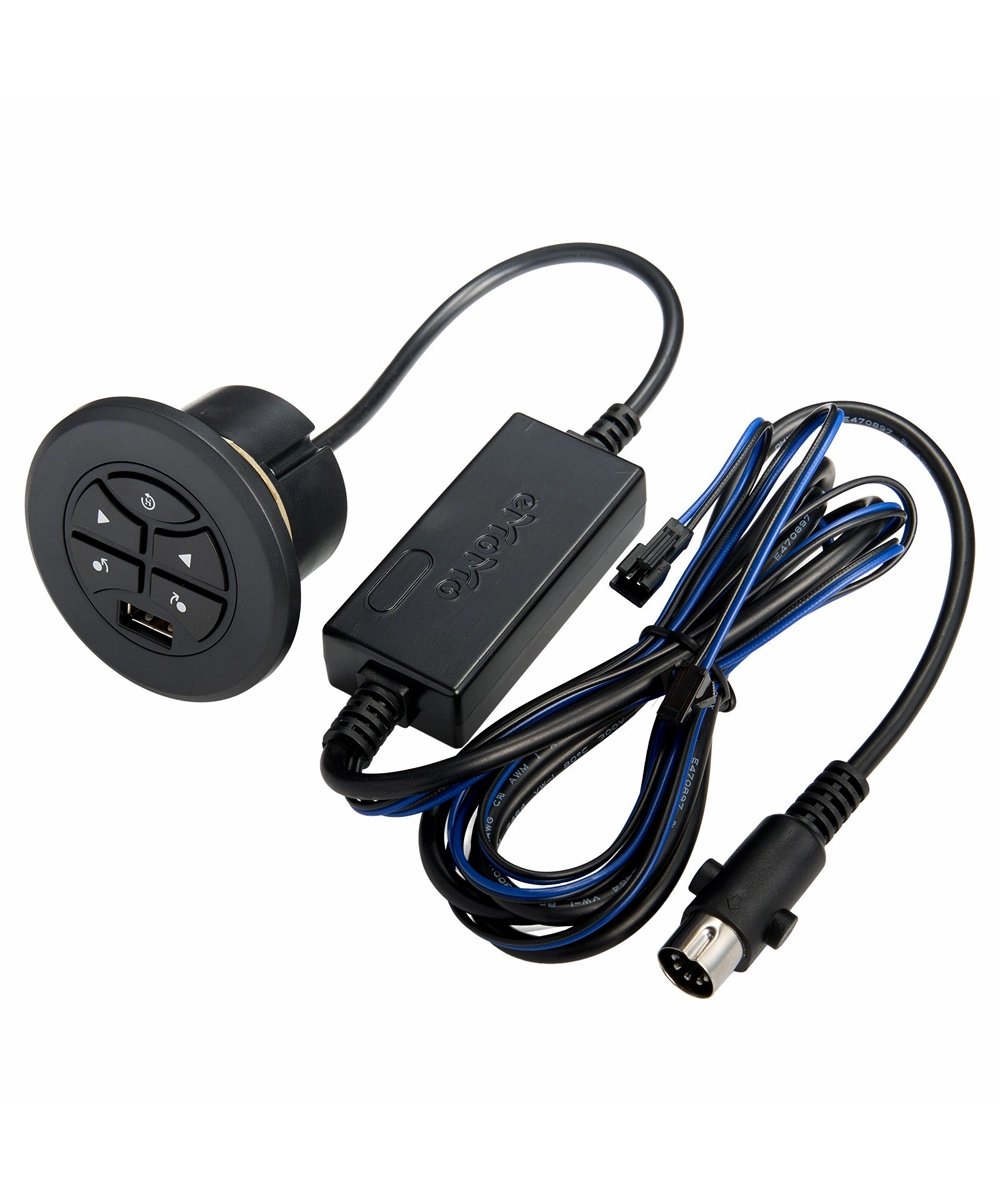

K202CL Genuine eMoMo 5-Button Control Switch Dual Motor & USB

$45.99

Bring your powered seating controls back to factory function with the Genuine eMoMo K202CL control switch
This OEM switch provides responsive control of chair open/close movement, headrest positioning, and LED lighting
It also includes the correct dedicated ports for cup holders and an LED light strip, plus a convenient USB charging output
Important: This switch is NOT cross-compatible. It only replaces K202CL or K20CL switches, and only on units with the approved serial prefixes listed below

MODEL: K202CL

SKU:TC045SWTCH

K202CL Genuine eMoMo 5-Button Control Switch Dual Motor & USB

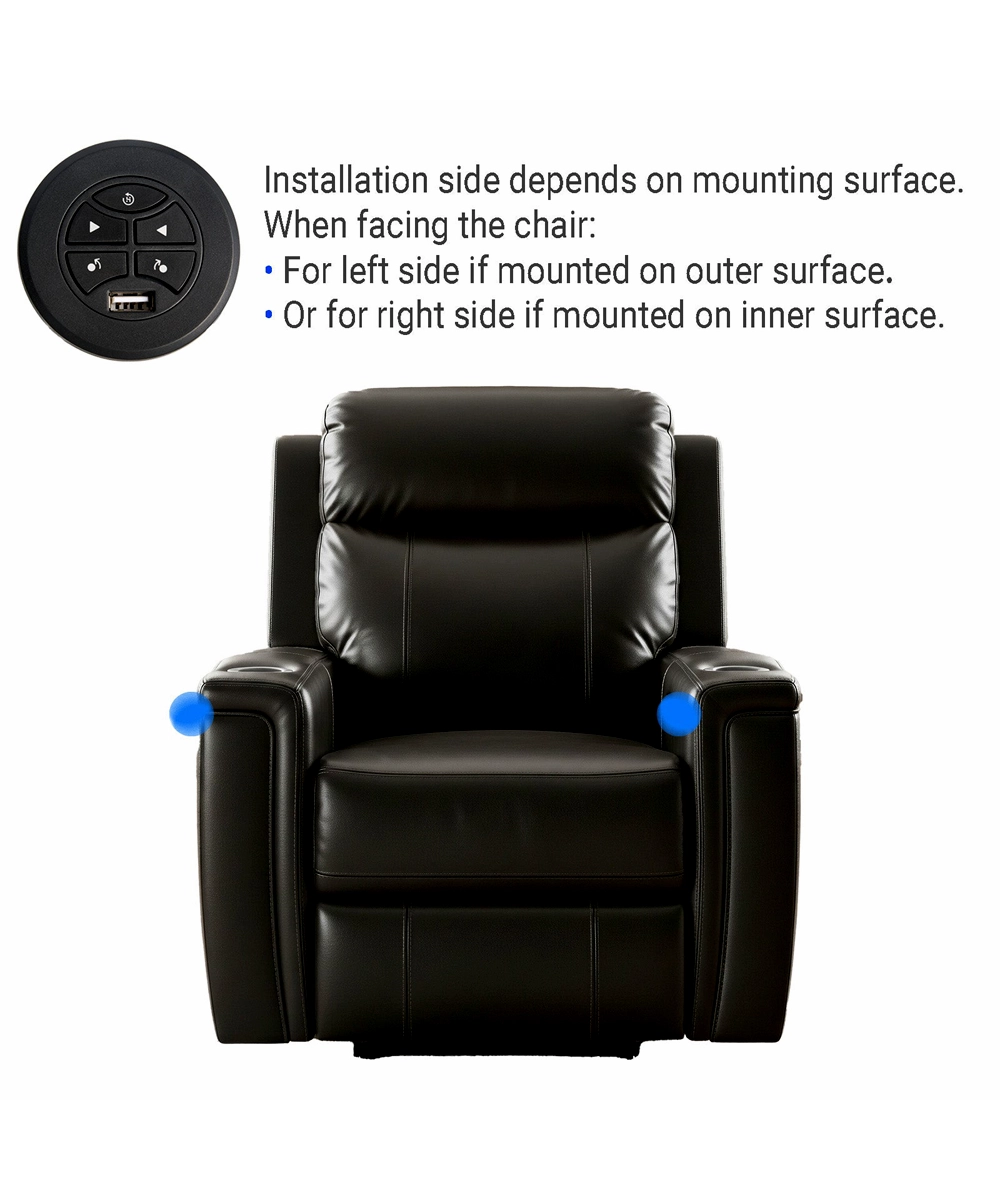

⚠️ Installation & Side Orientation:

Orientation is determined while facing the chair:
☑ Left Side: If the switch is mounted on the outer surface (armrest exterior)
☑ Right Side: If the switch is mounted on the inner surface (between the cushion and armrest)

Detailed Compatibility Guide

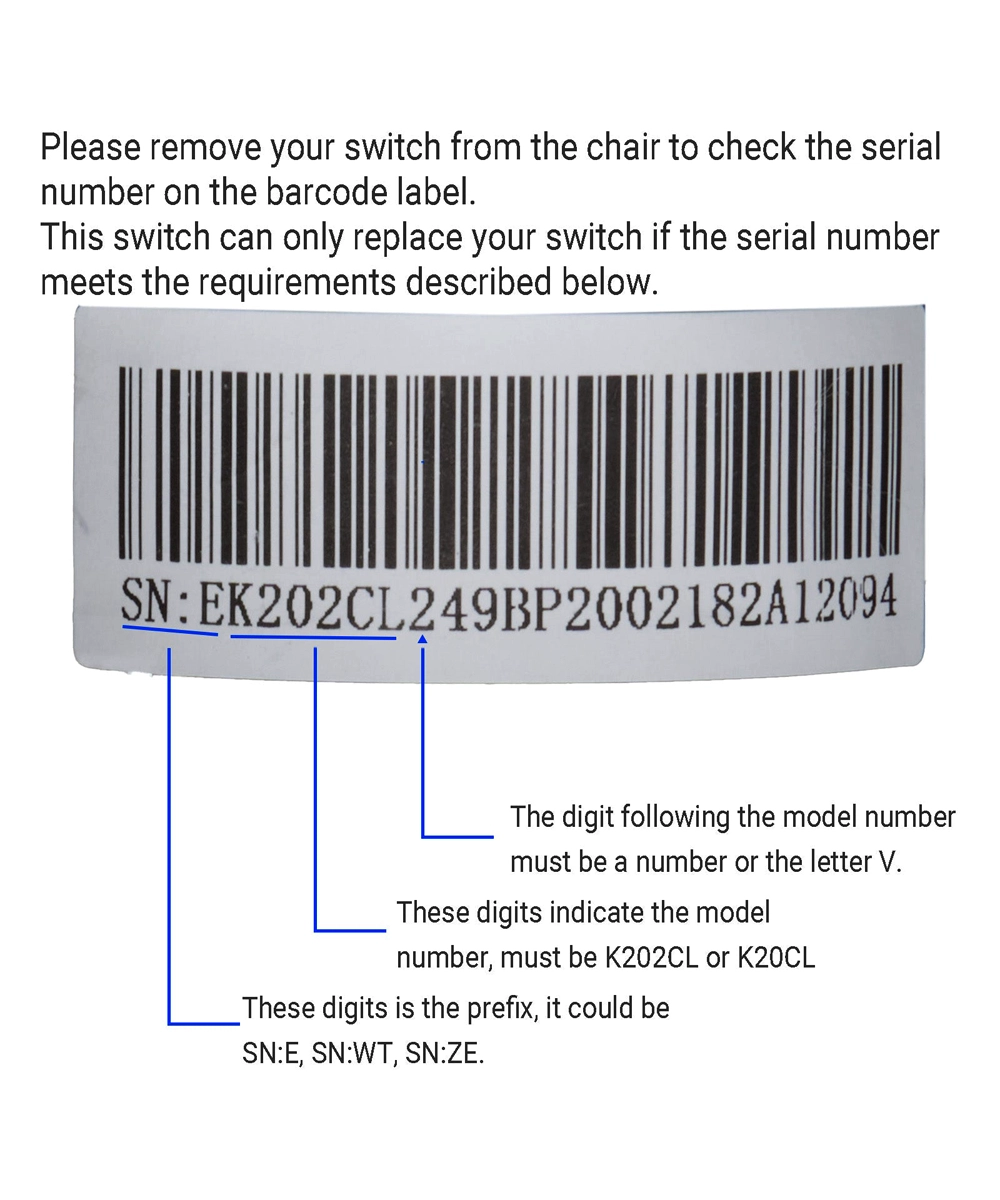

Important: This switch is not cross-compatible with other models. It exclusively replaces units with the following serial number prefixes (followed by a number or the letter “V”):
☑ SN: EK202CL / WTK202CL / ZEK202CL
☑ SN: EK20CL / WTK20CL / ZEK20CL

Technical Features:

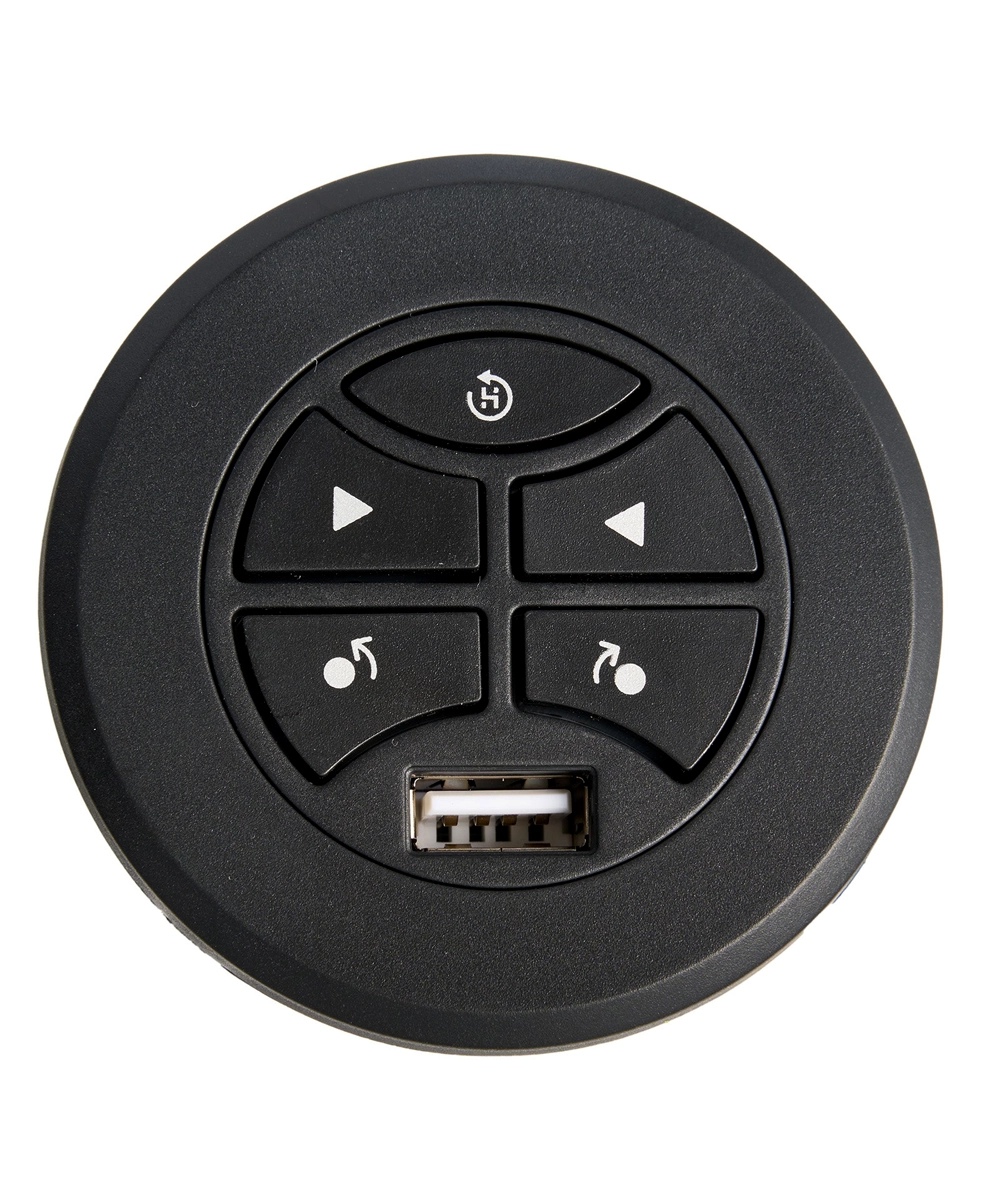

5-Button Interface: Smooth operation for Open/Close, Headrest adjustment (Forward/Retract), and LED Light Toggle
USB Charging: Integrated 5V 2A output for smartphones and tablets

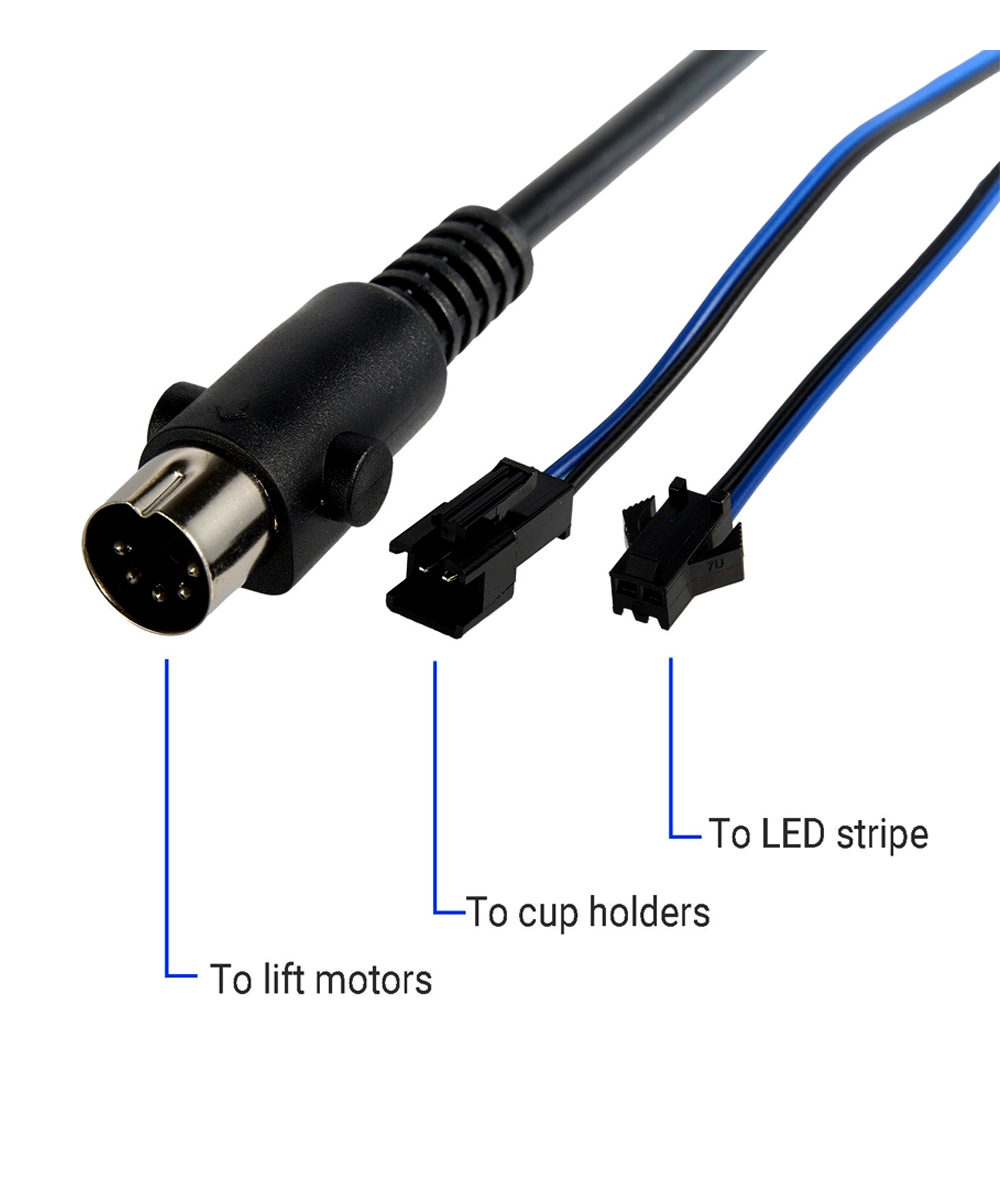

Plug & Play Wiring:
☑ 5-Pin Male Plug: Connects to the master motor
☑ 2-Pin Male Plug: Connects to the cup holders
☑ 2-Pin Female Plug: Connects to the LED light stripe
