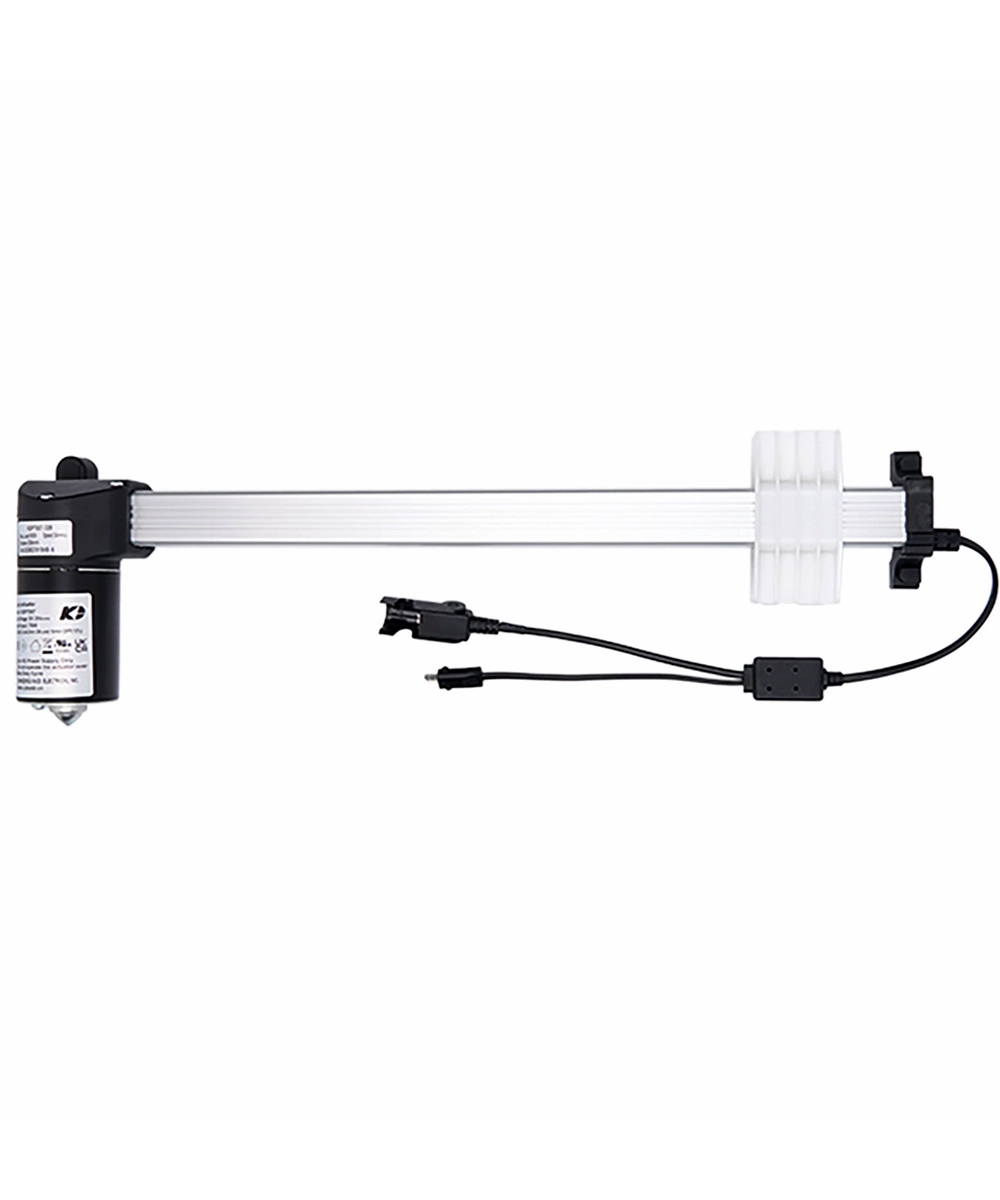

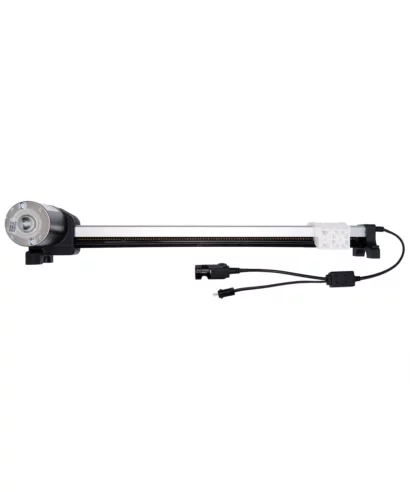

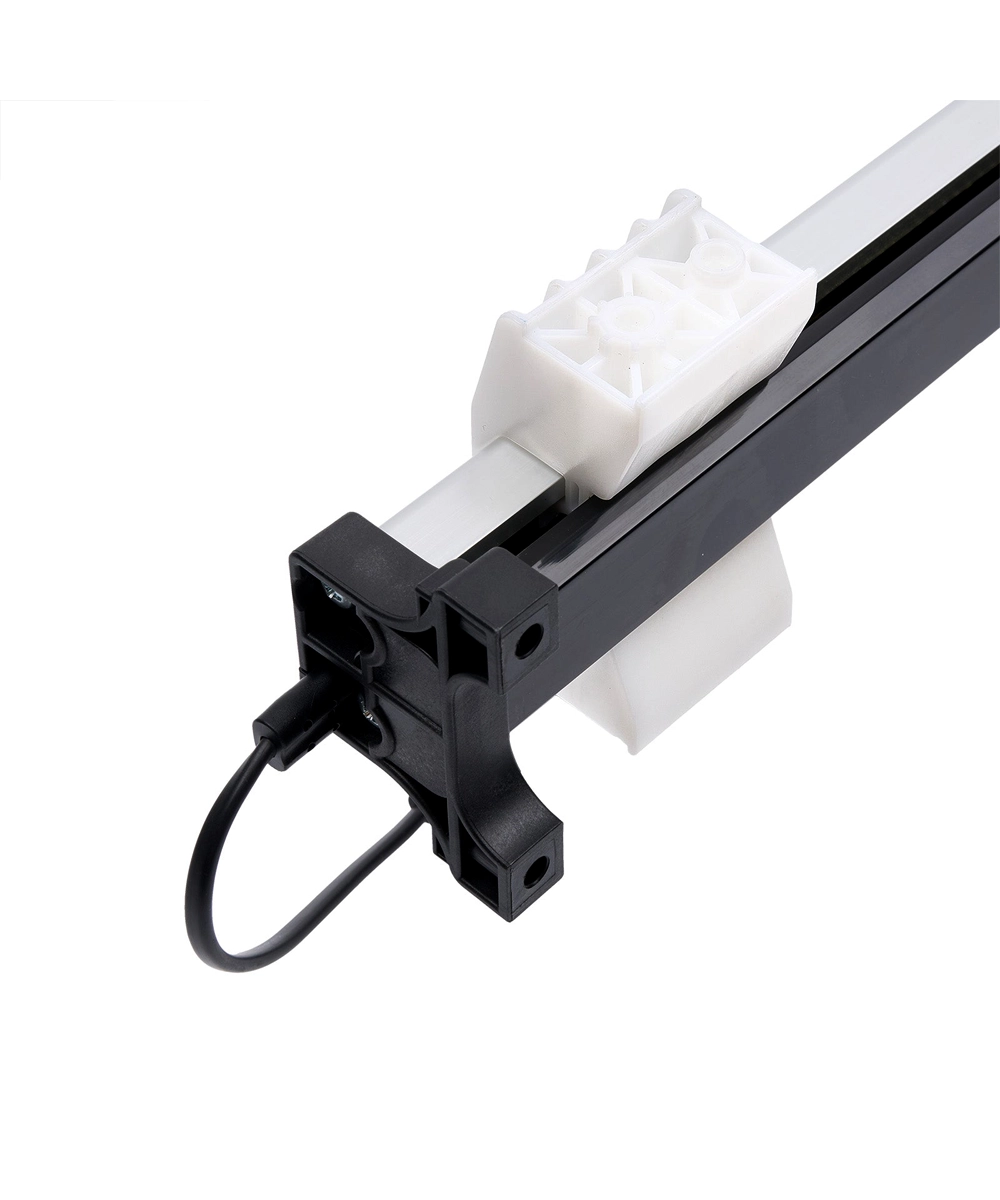

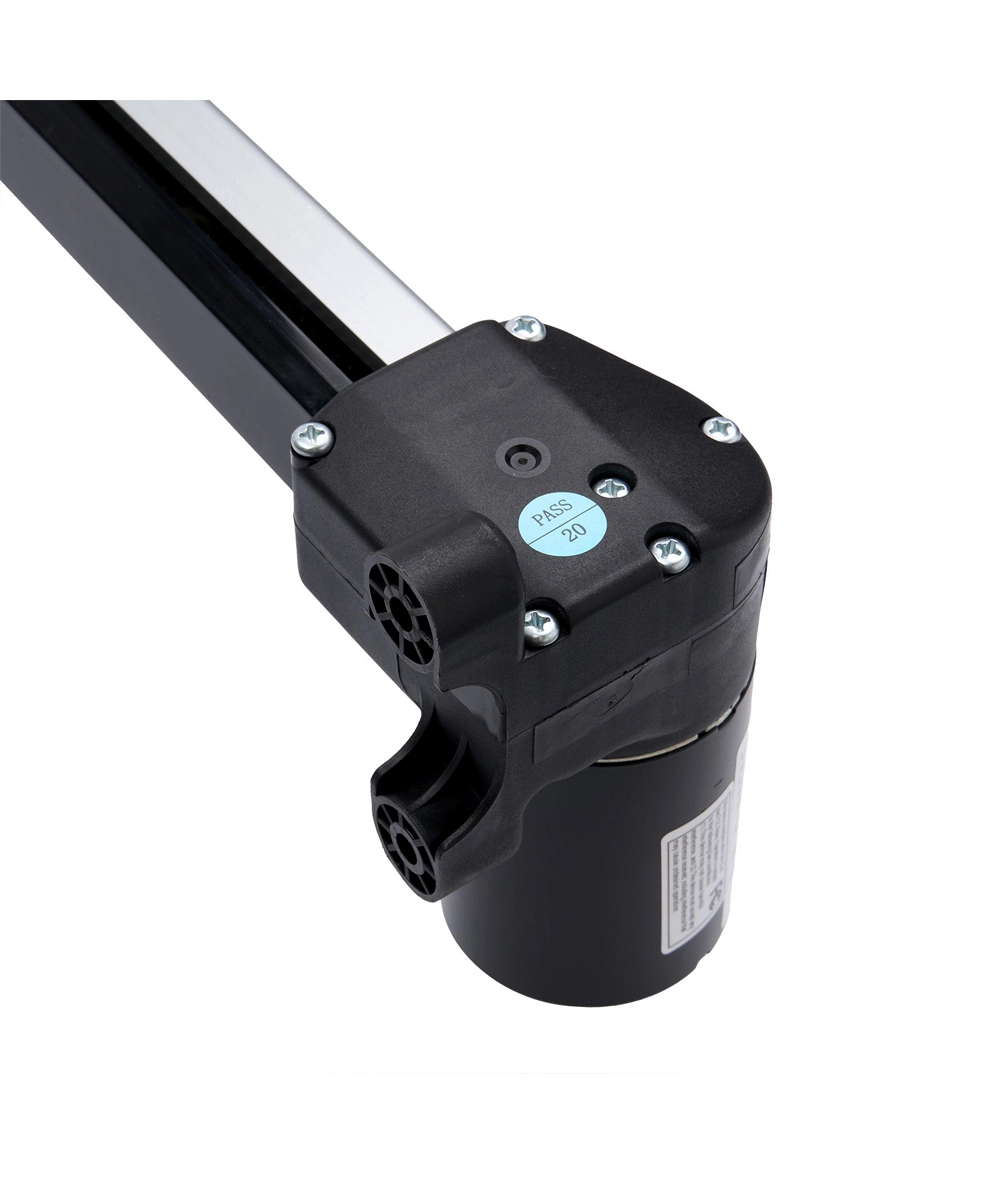

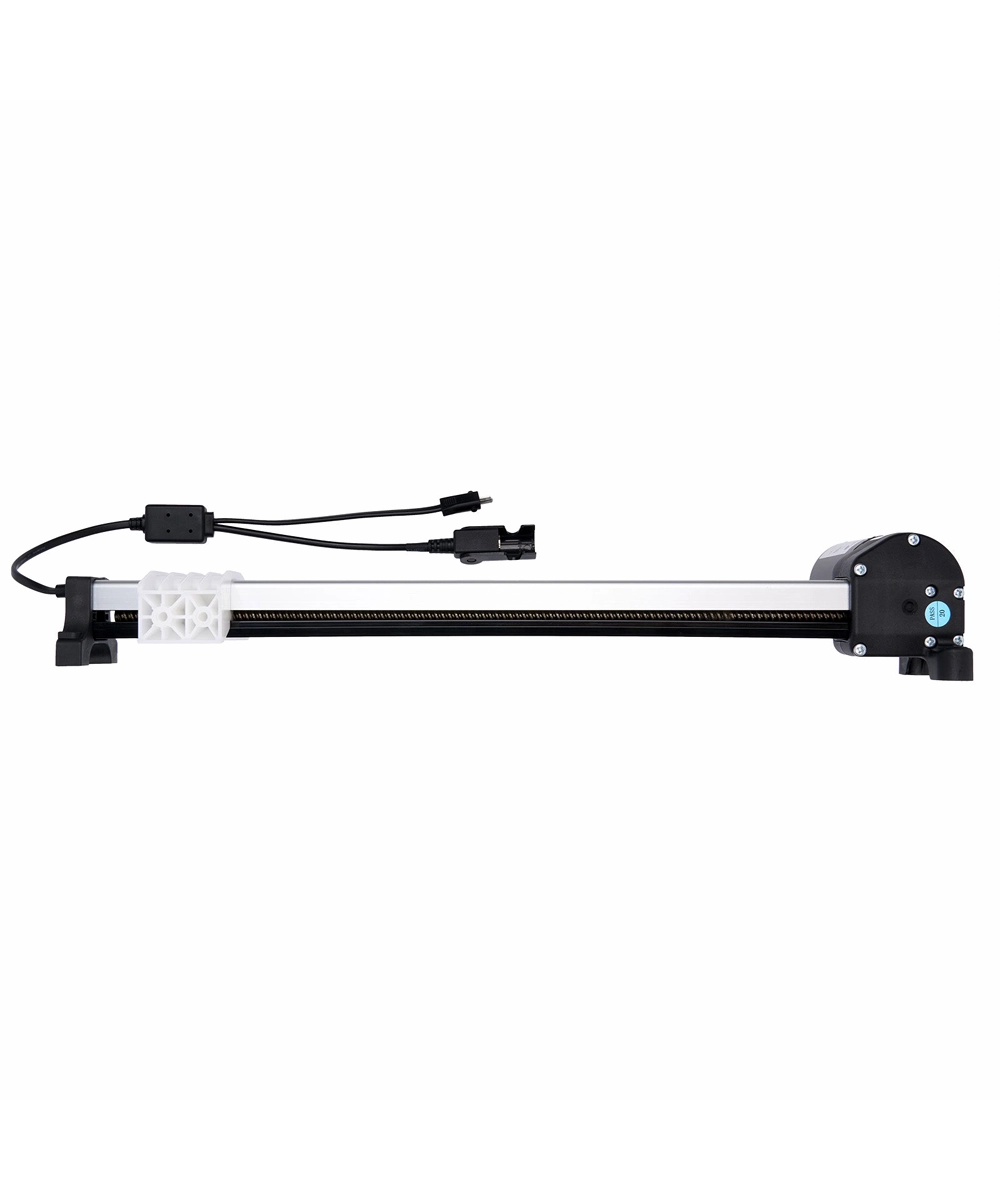

KDPT007-329 Kaidi Linear Actuator Motor for Recliner/Lift Chair

$109.99

  • This is the genuine KAIDI KDPT007-329 linear actuator – the driving motor for the open/close (incline/recline) of power recliner or lift chair
  • This actuator can only replace the KDPT007-329, if the model of your actuator is different, please avoid order

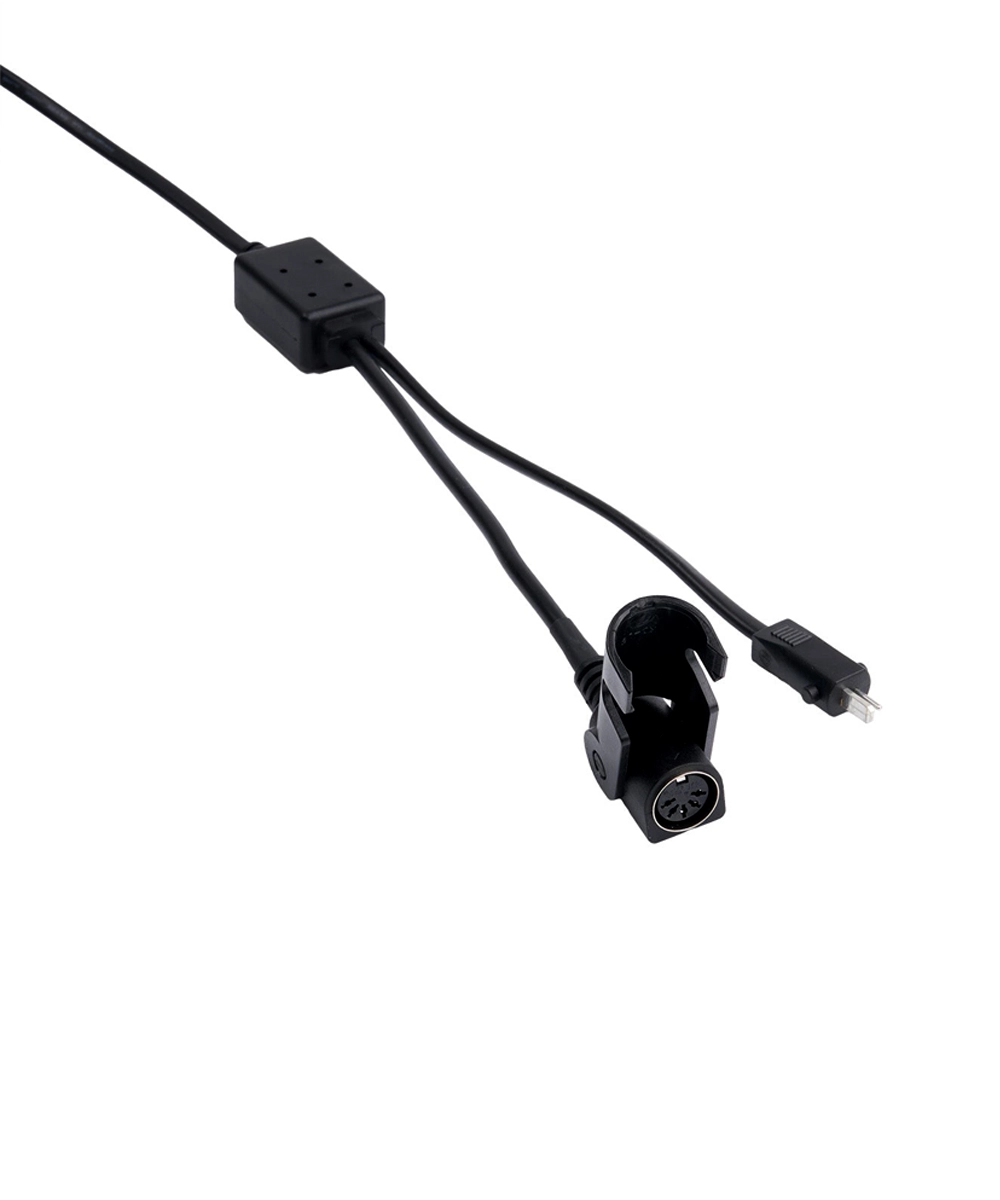

  • This actuator has two cables and plugs:
    ☑ A male 2 pin plug connects to the power adapter
    ☑ A female 5 pin plug connects to the remote controller/switch

MODEL: KDPT007-329

Please check the model number of the motor before ordering. If the model number does not match exactly to your motors model number, check with us before ordering to make sure that the motor is a suitable replacement.
Sometimes it may be noted in the description, if not check with us before ordering.

KDPT007-329 Kaidi Linear Actuator Motor for Recliner/Lift Chair

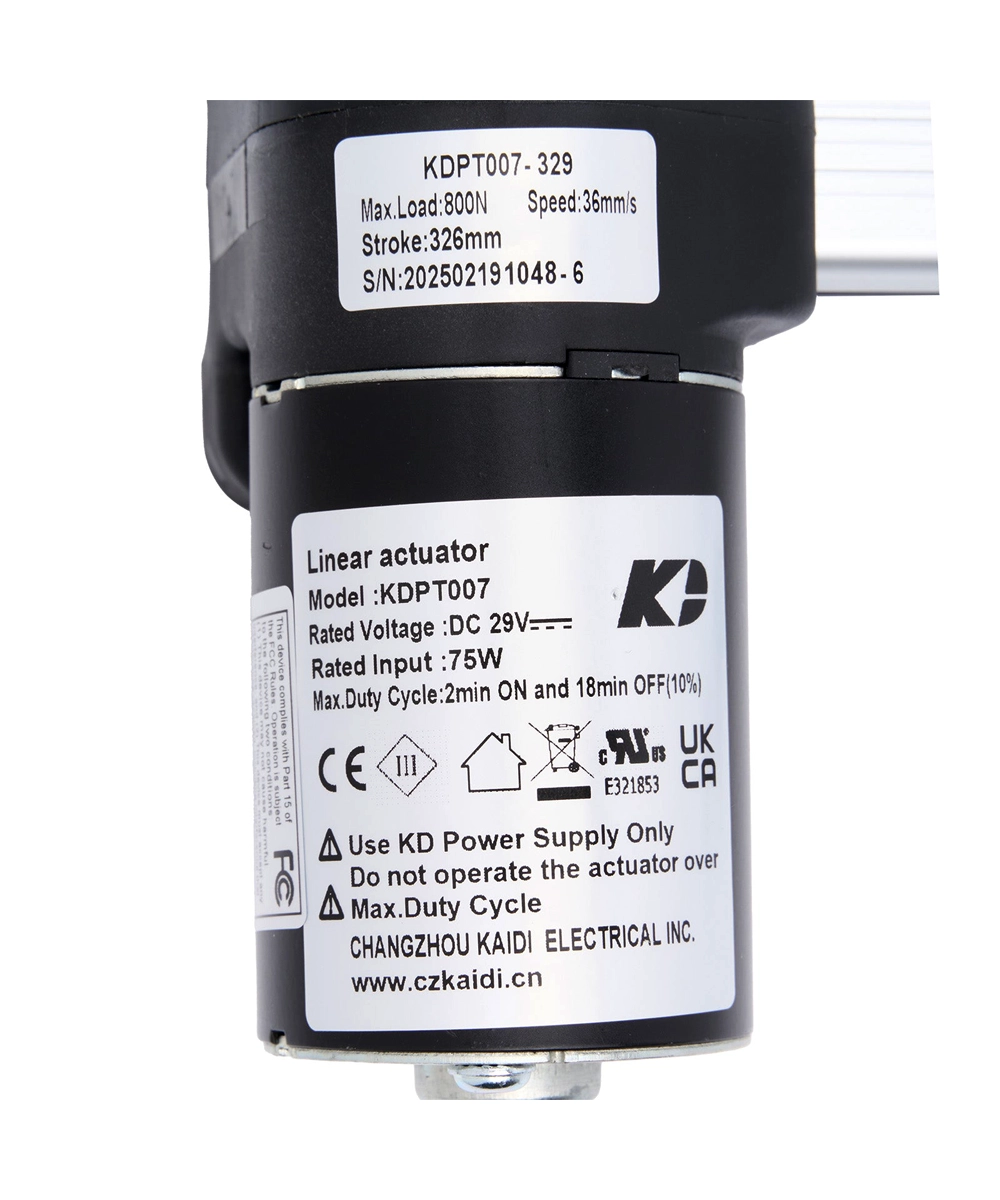

SPECIFICATIONS:

  • Max load: 800N
  • Speed: 36mm/s
  • Minimum install dimension: 48mm/1.89 inches
  • Stroke: 326mm/12.83 inches
  • Rated Voltage: DC 29V
  • Rated Input: 75W
  • Max Duty Cycle 2min ON and 18min OFF (10%)

MODEL: KDPT007-329

Weight 67.2 oz
