Name: R22231010050 RMT 5-Button Switch for Recliner Lift Chair
SKU: TC138SWTCH
Availability: InStock

R22231010050 RMT 5-Button Switch for Recliner Lift Chair

$34.99

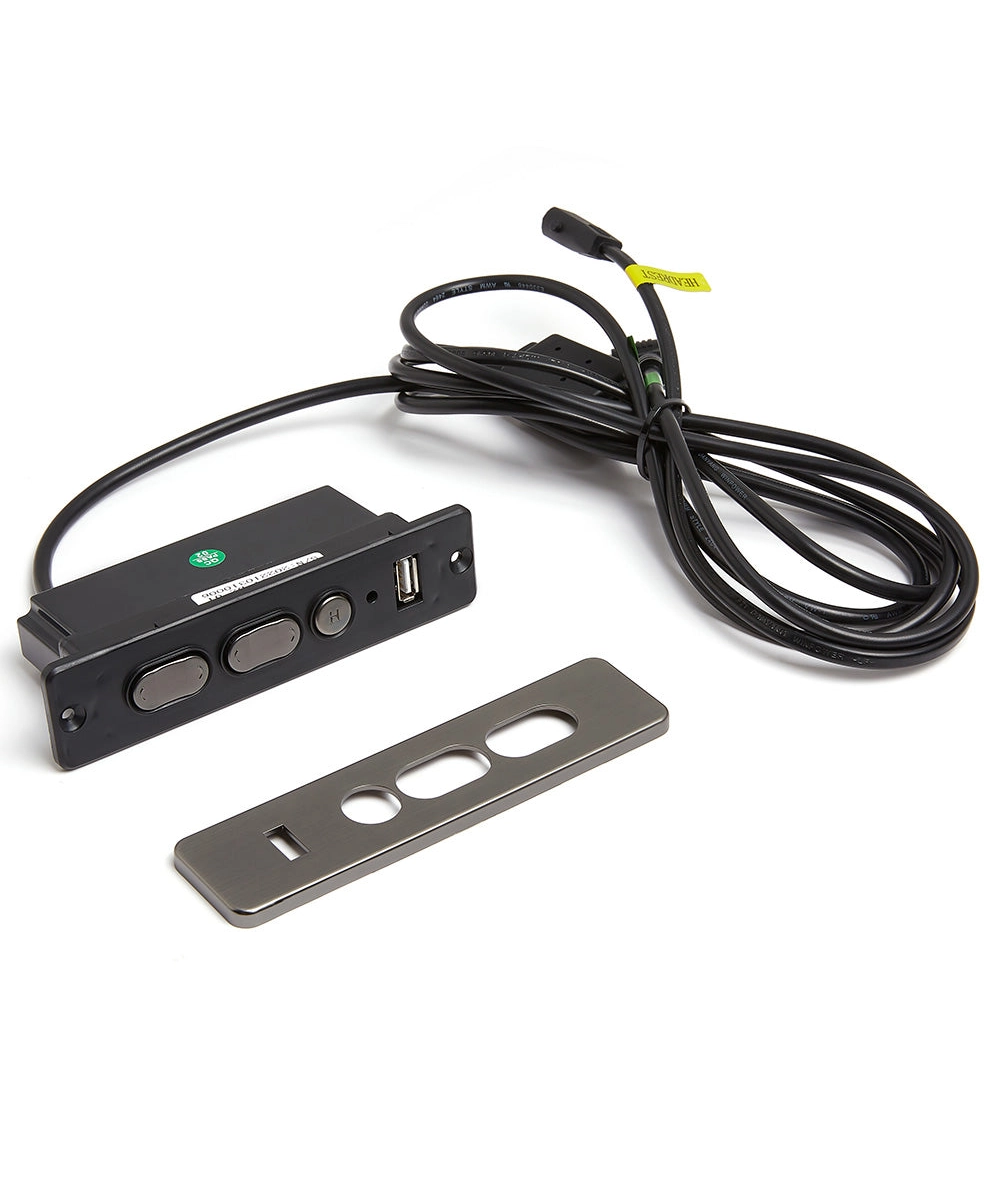

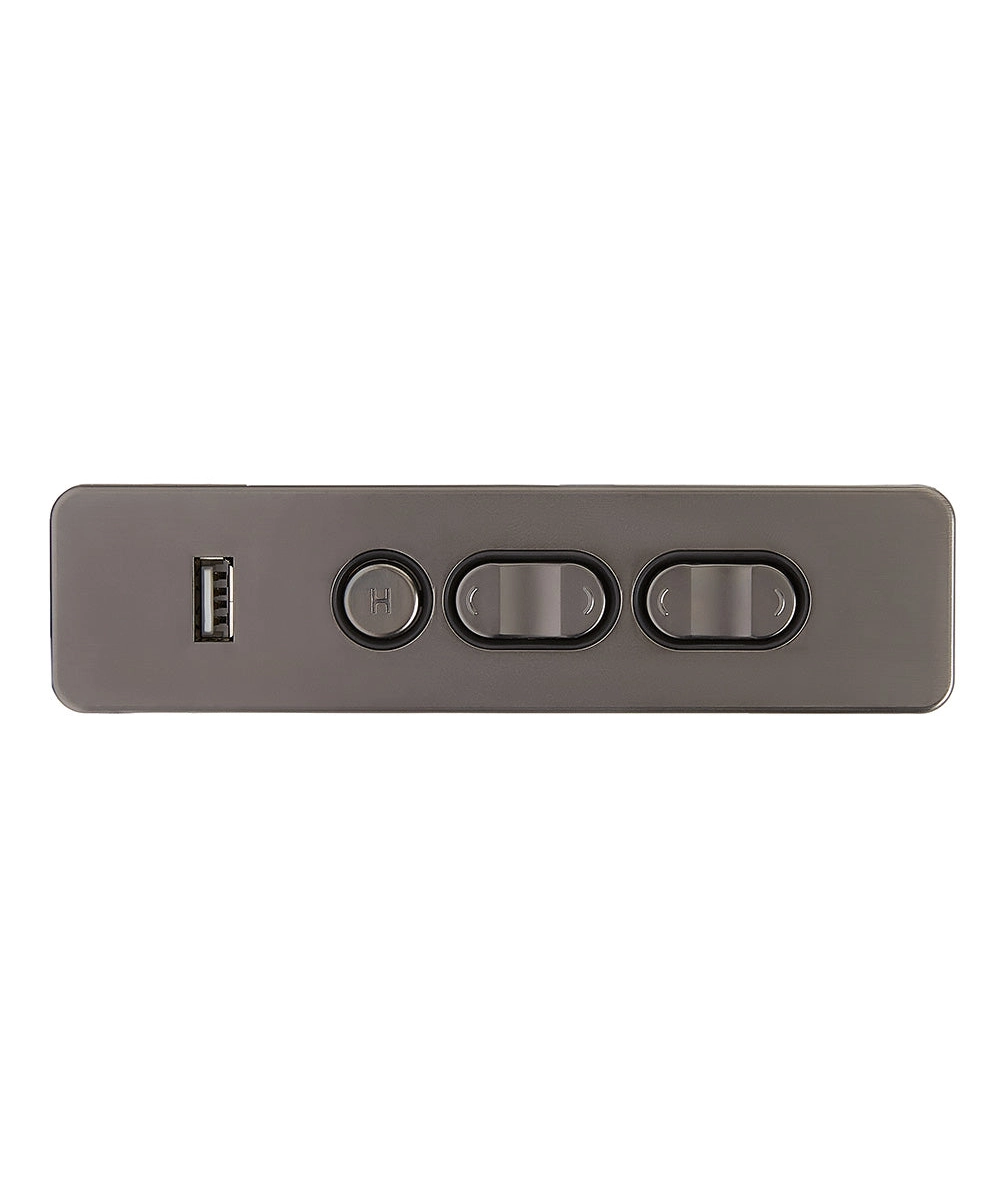

This switch, has 5 buttons, suitable for power recliner/lift chair with 2 linear actuator motors (up/down motors).

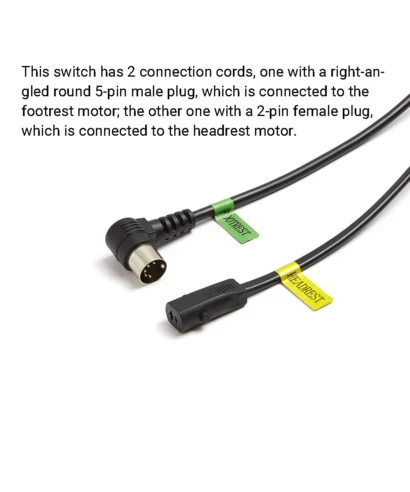

This switch has 2 connection cords, one with a right-angled round 5-pin male plug, which is connected to the footrest motor; the other one with a 2-pin female plug, which is connected to the headrest motor
With USB charging port, you can use it to charge your mobile devices

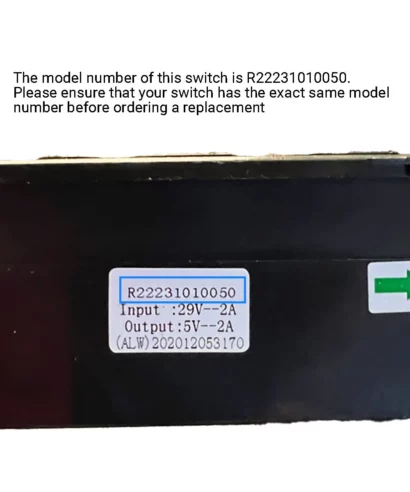

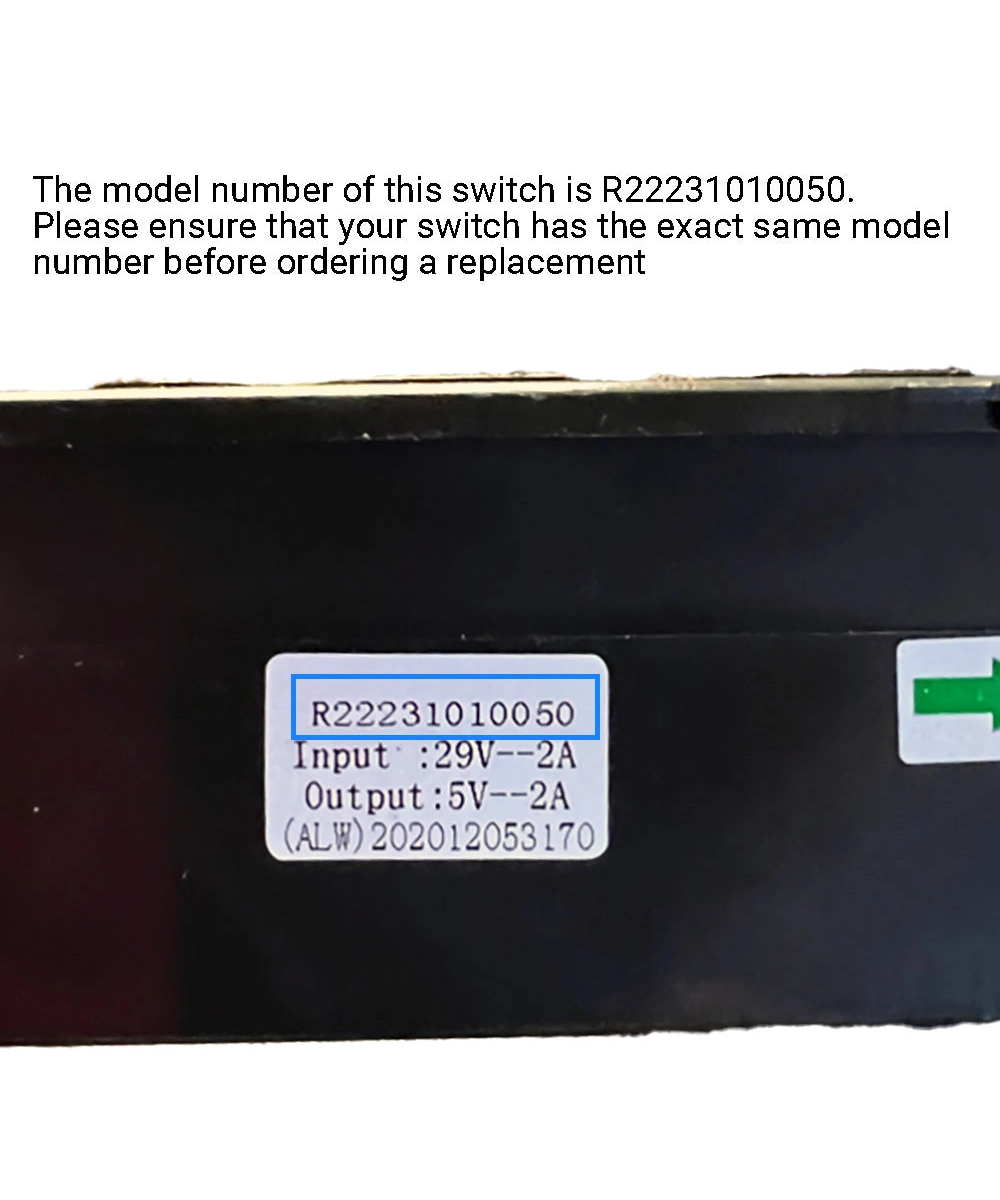

It can only replace the switch with the same model, if your switch’s model number is different, please do not buy it
The genuine R22231010050 has been discontinued, we now use the DL-SK-091-D2-01 to replace it. These two models have the exact same specification

MODEL: R22231010050

R22231010050 RMT 5-Button Switch for Recliner Lift Chair

NOTE:
The front cover plate of the switch is difficult to remove once it is locked. To facilitate your installation, the plate will be separated from the switch when shipping
When you are installing the switch, do not install the cover plate until everything is done
After installing this switch to your chair, please operate the chair to the highest and lowest position a couple of times, so that the switch can identify the stroke of the motor.

MODEL: R22231010050
