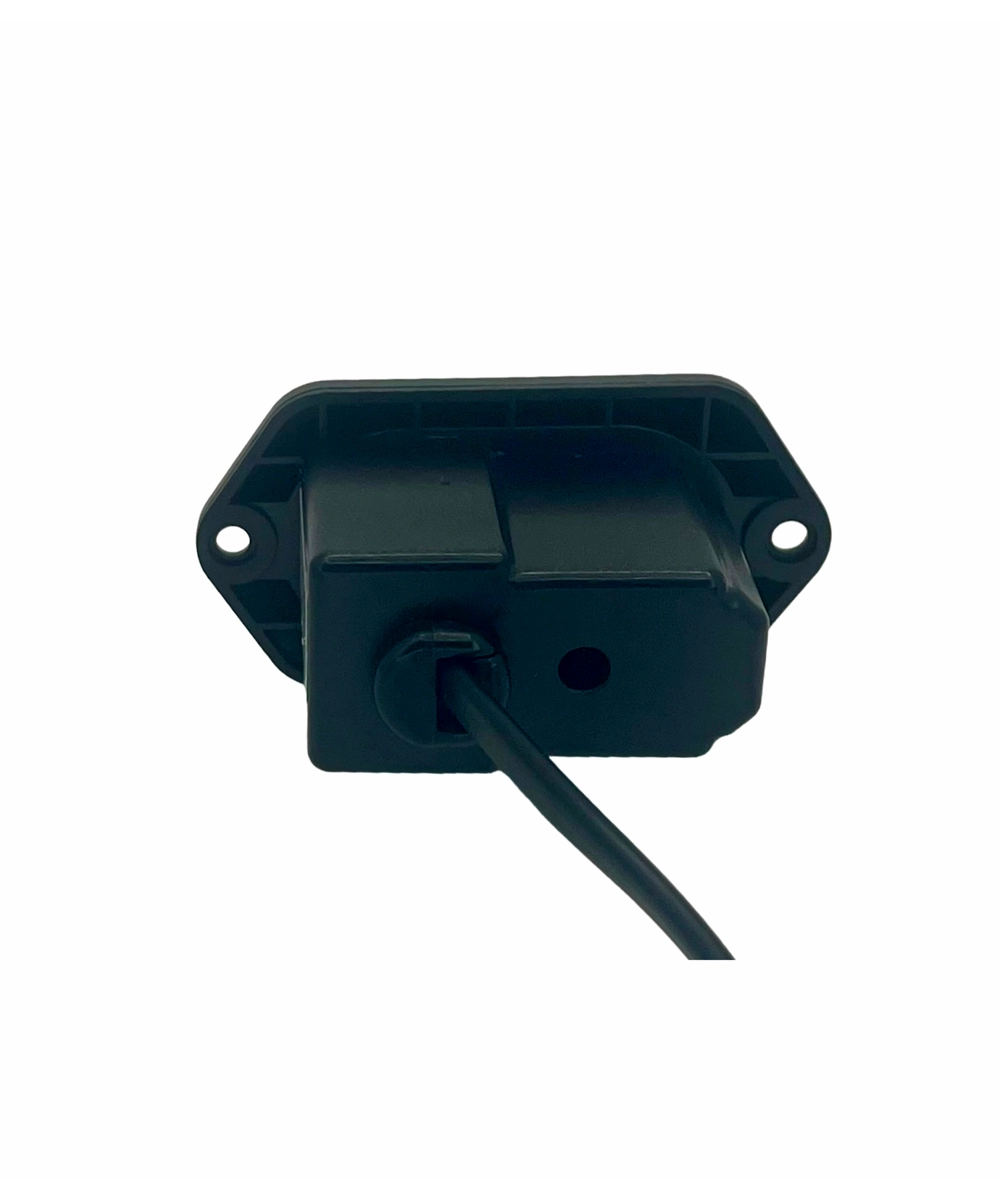

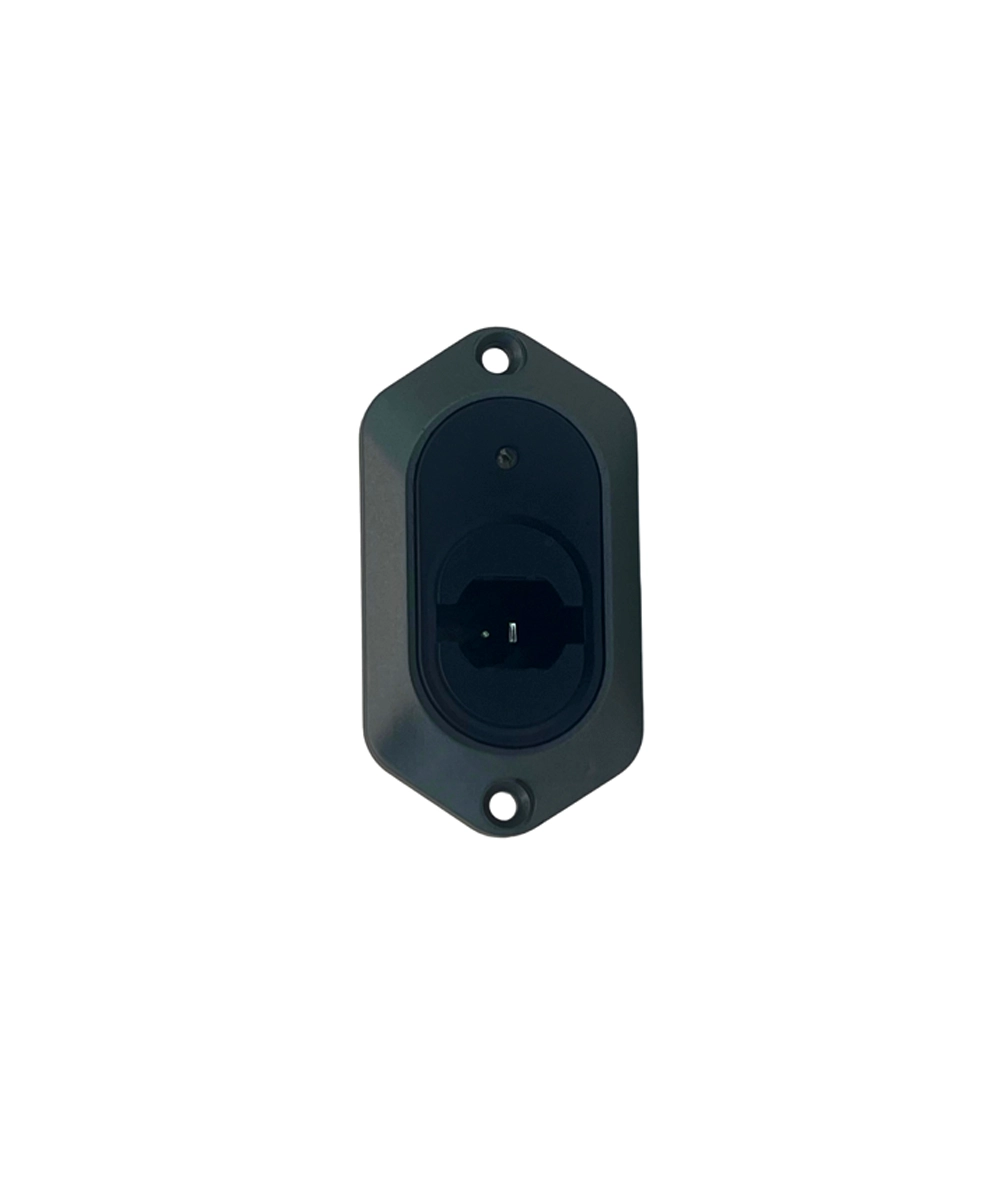

23200034X000 RMT DC Power Socket with Blue LED for Recliners
Key Features:
- Surface-Mount Design: Two exposed screw holes make installation straightforward on the external frame of your furniture

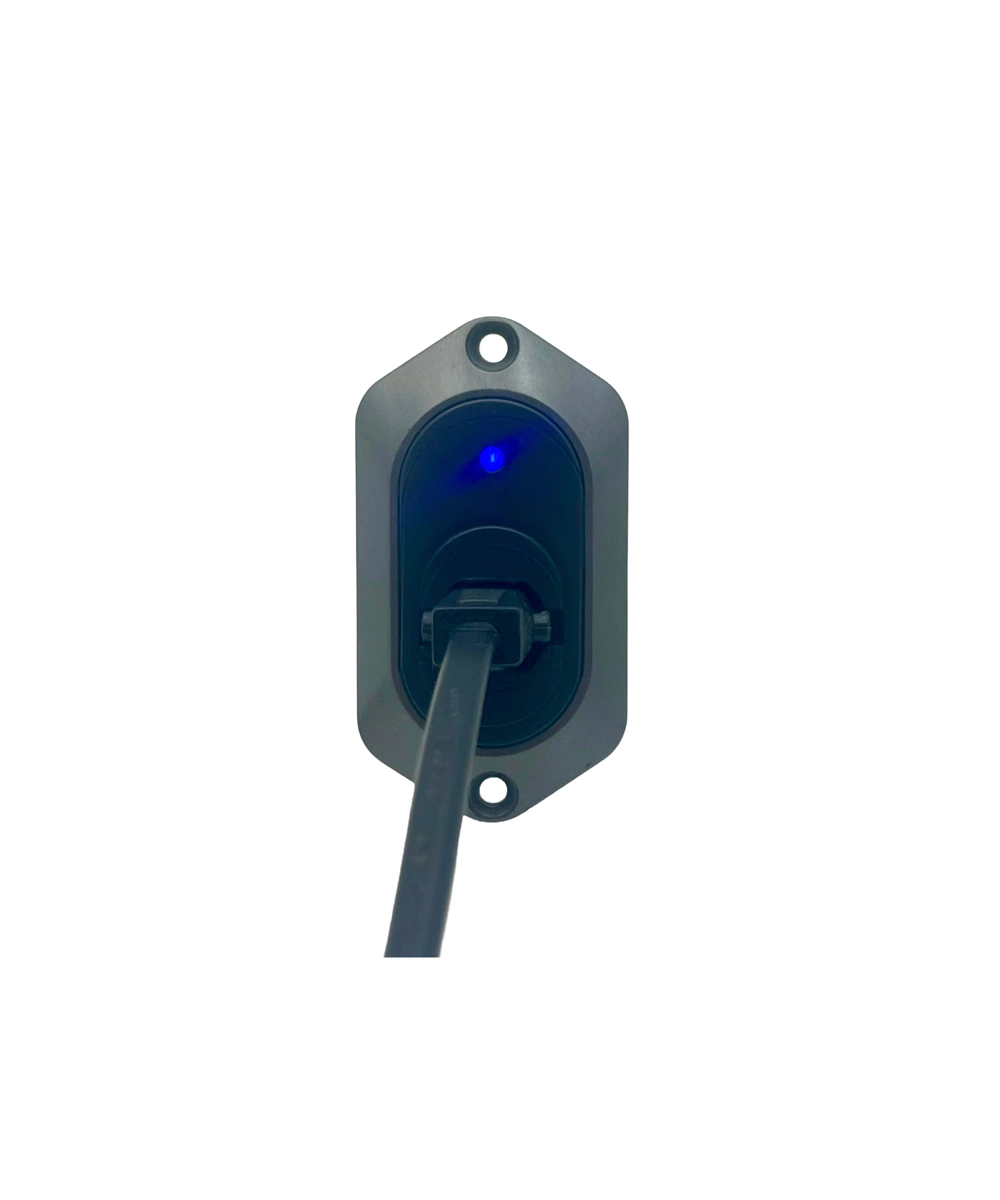

- Illuminated Status: The vibrant blue LED indicator glows when the 29VDC power supply is active

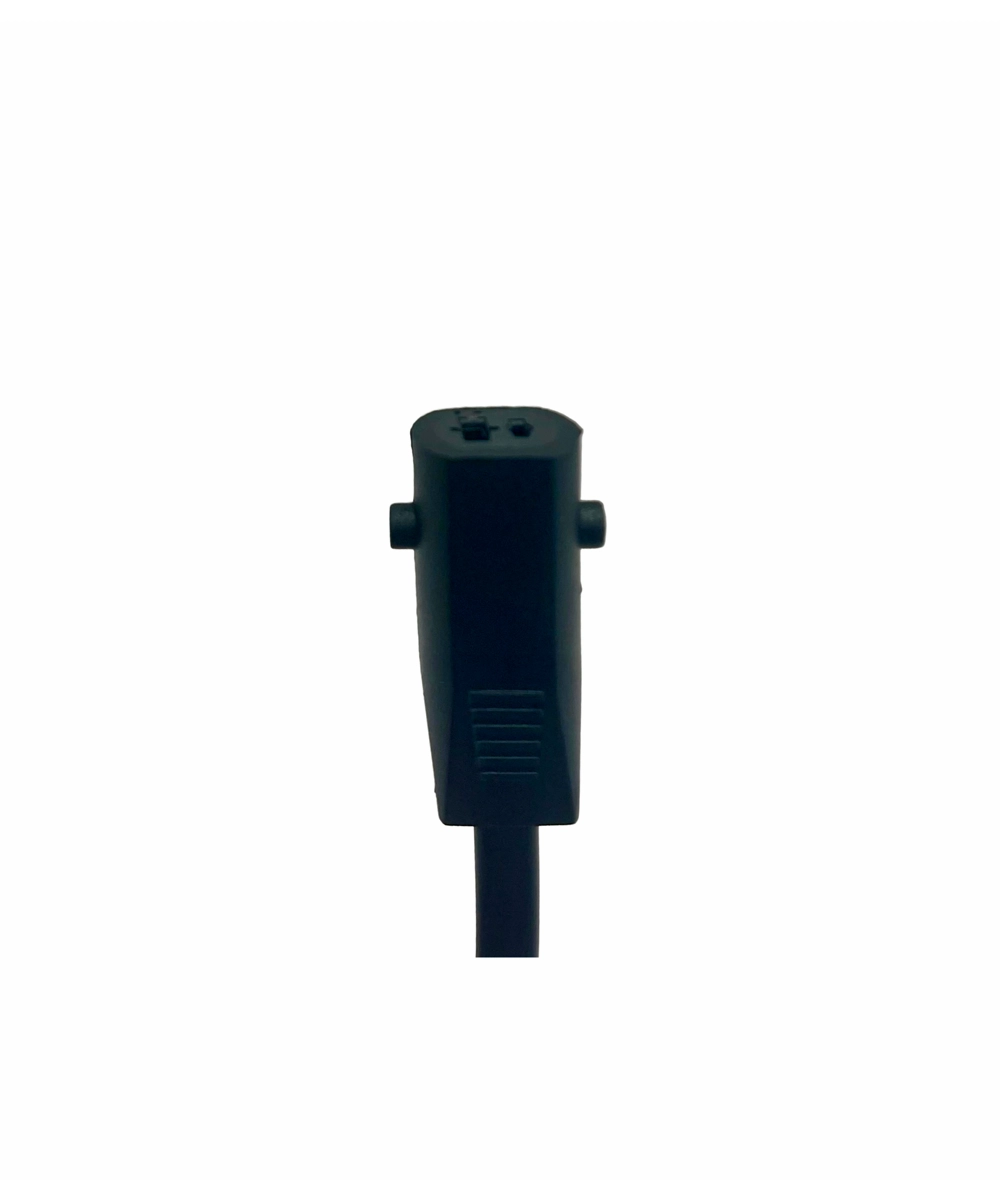

- Industry Standard Connector: Features the universal 2-pin (Okin-style) input and output for maximum compatibility

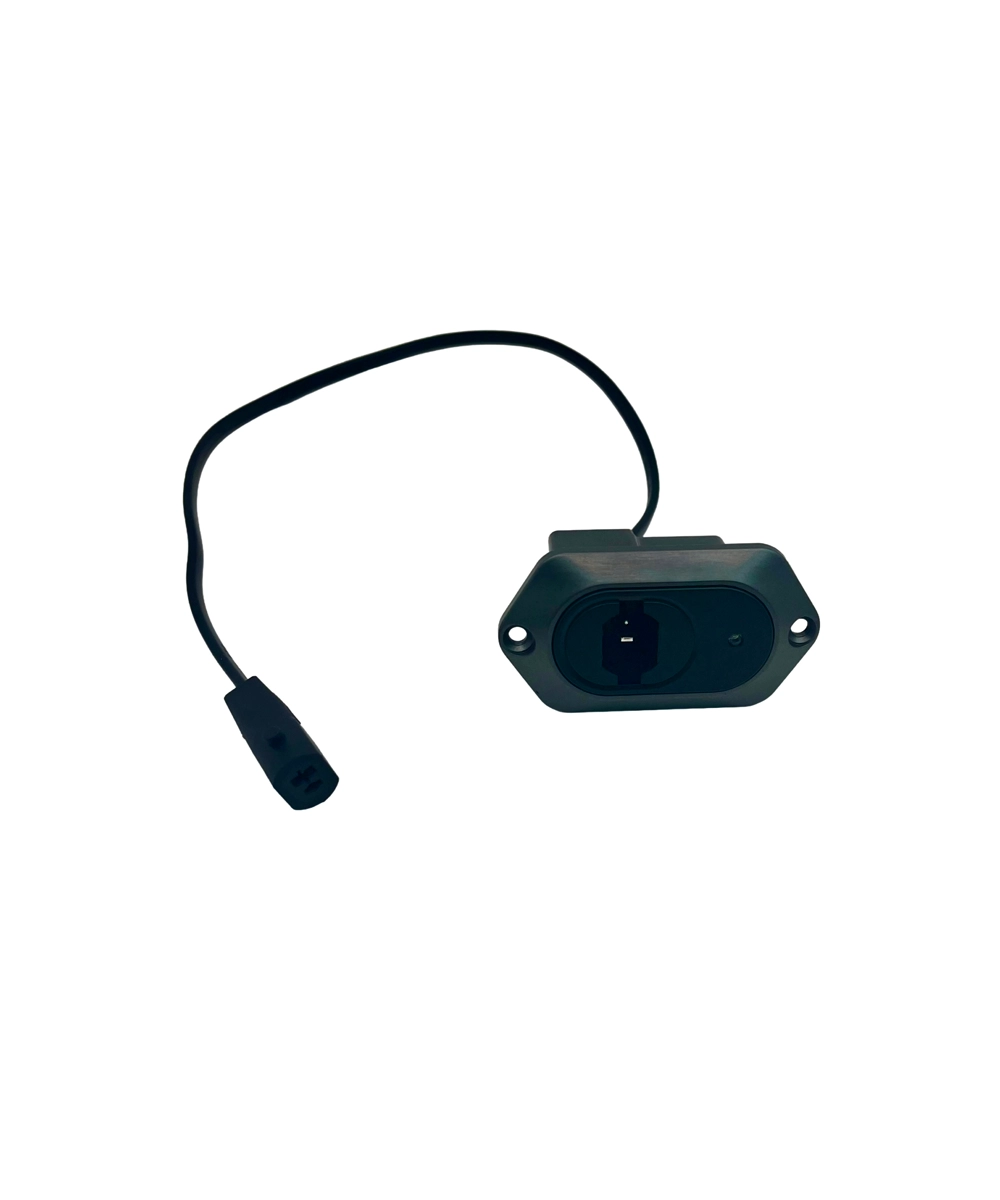

- Extended Reach: Equipped with a 400mm (15.7″) lead wire to easily reach internal junction boxes or motors
Technical Specifications:
- Input / Output: 29VDC (2-Pin Standard)
- LED Color: Illuminated Blue
- External Face Size: 70mm x 35mm (approx. 2.75″ x 1.37″)
- Required Aperture (Cutout): 45mm x 25mm (approx. 1.77″ x 0.98″)
- Cable Length: 400mm (approx. 15.7 inches)
- Mounting: 2 Exposed Screw Holes (Surface Mount)
- Brand: RMT
MODEL: 23200034X000
