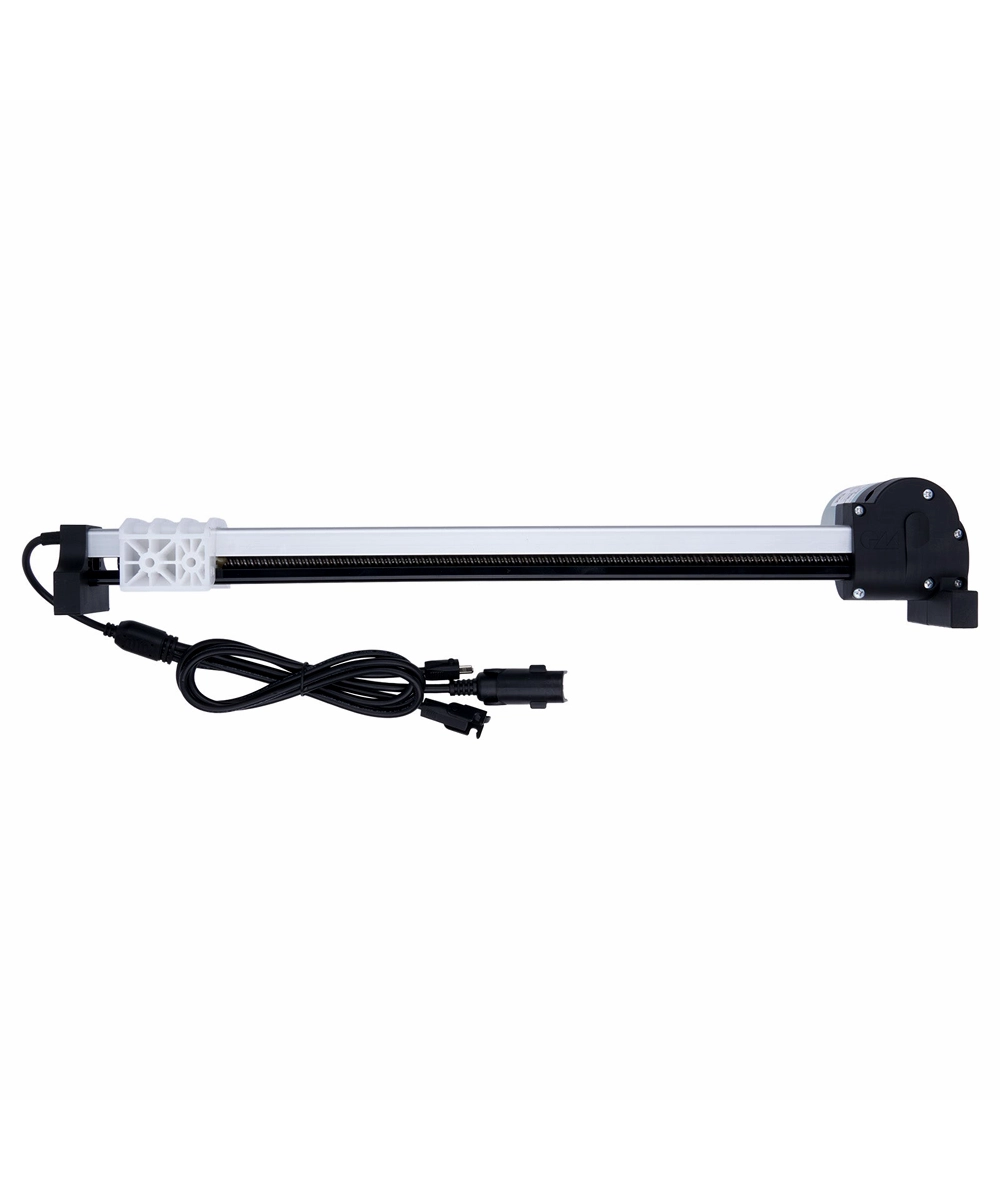

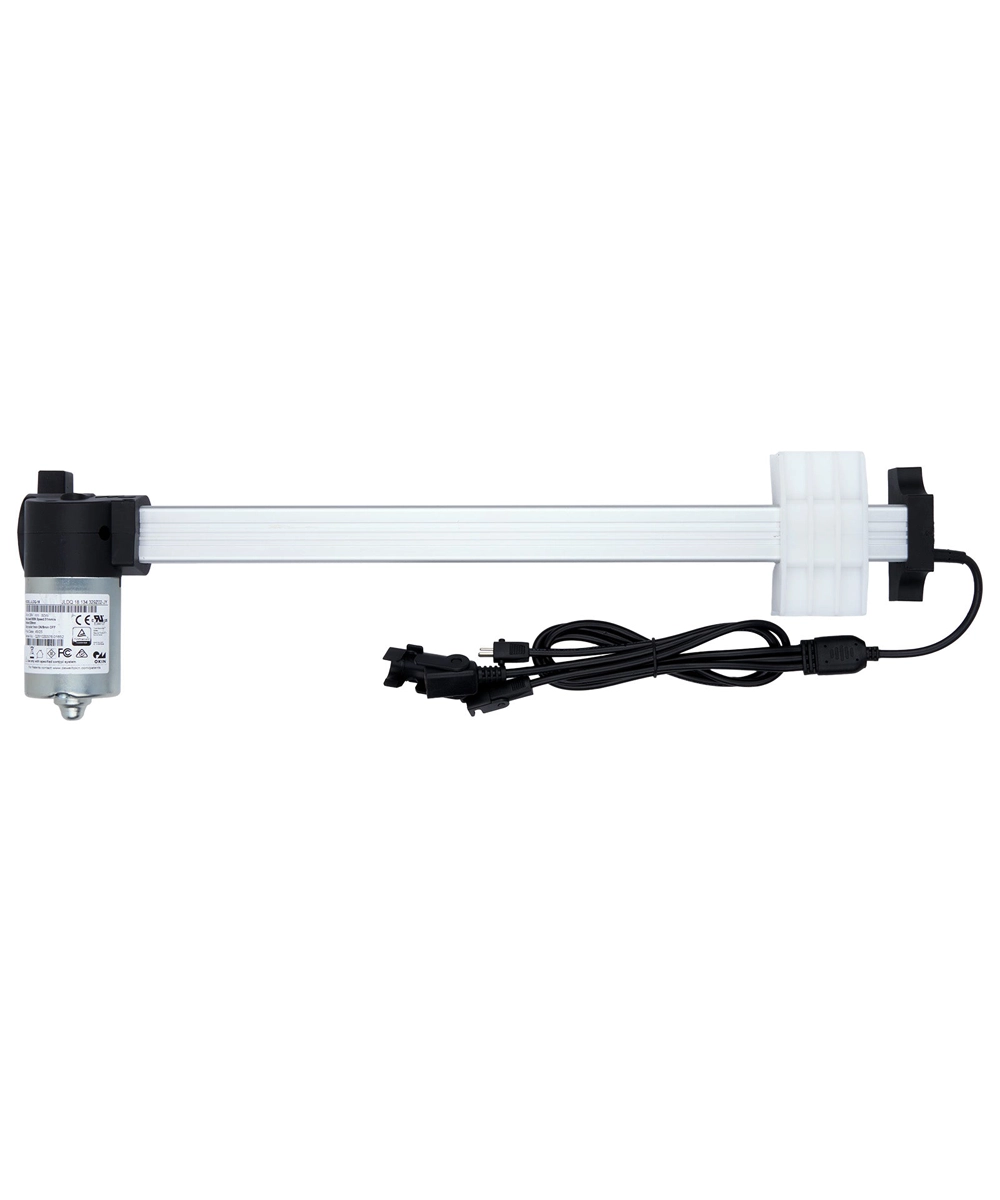

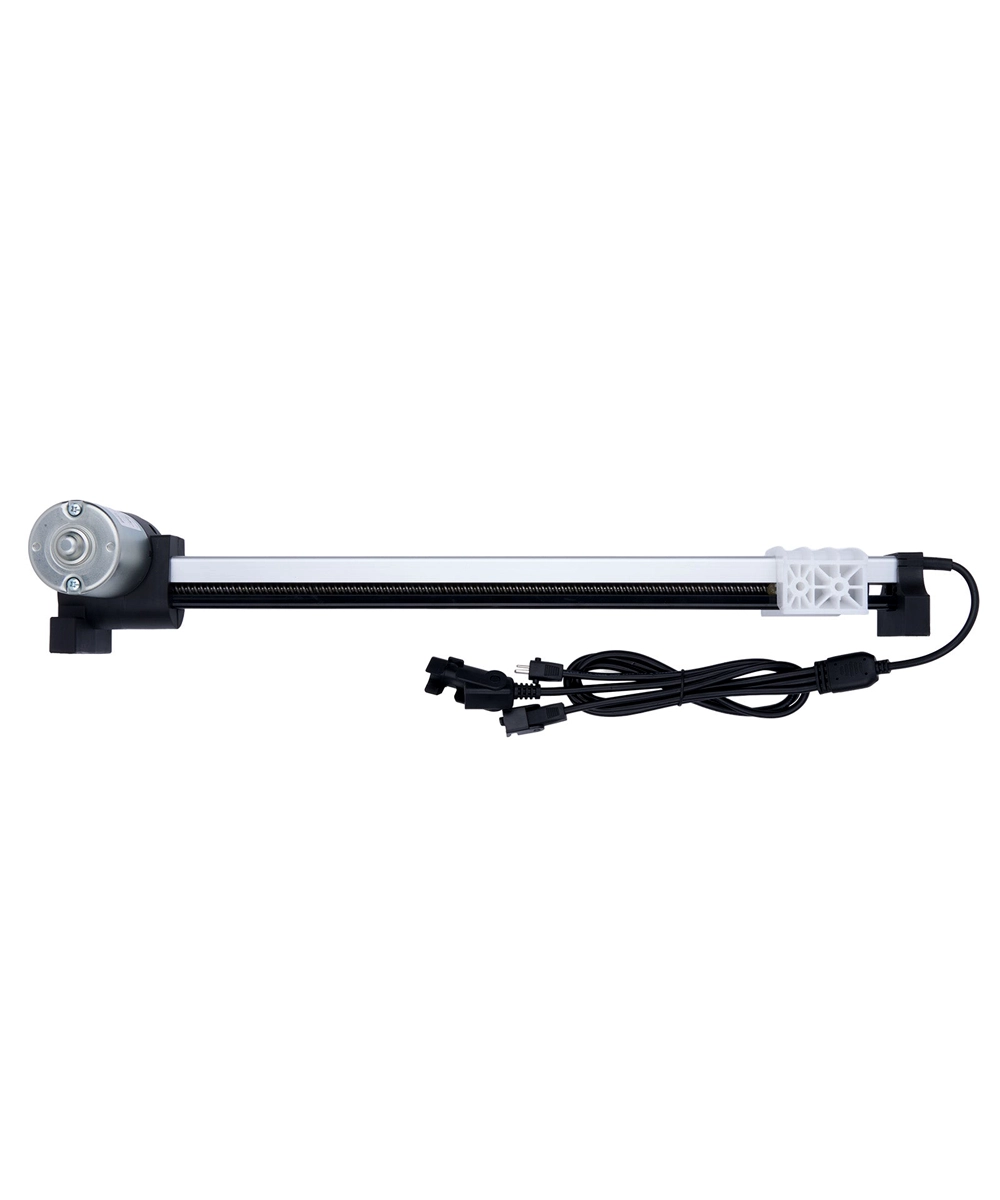

JLDQ.18.134.329Z02-JY Okin Linear Actuator Replacement
Verified Compatibility

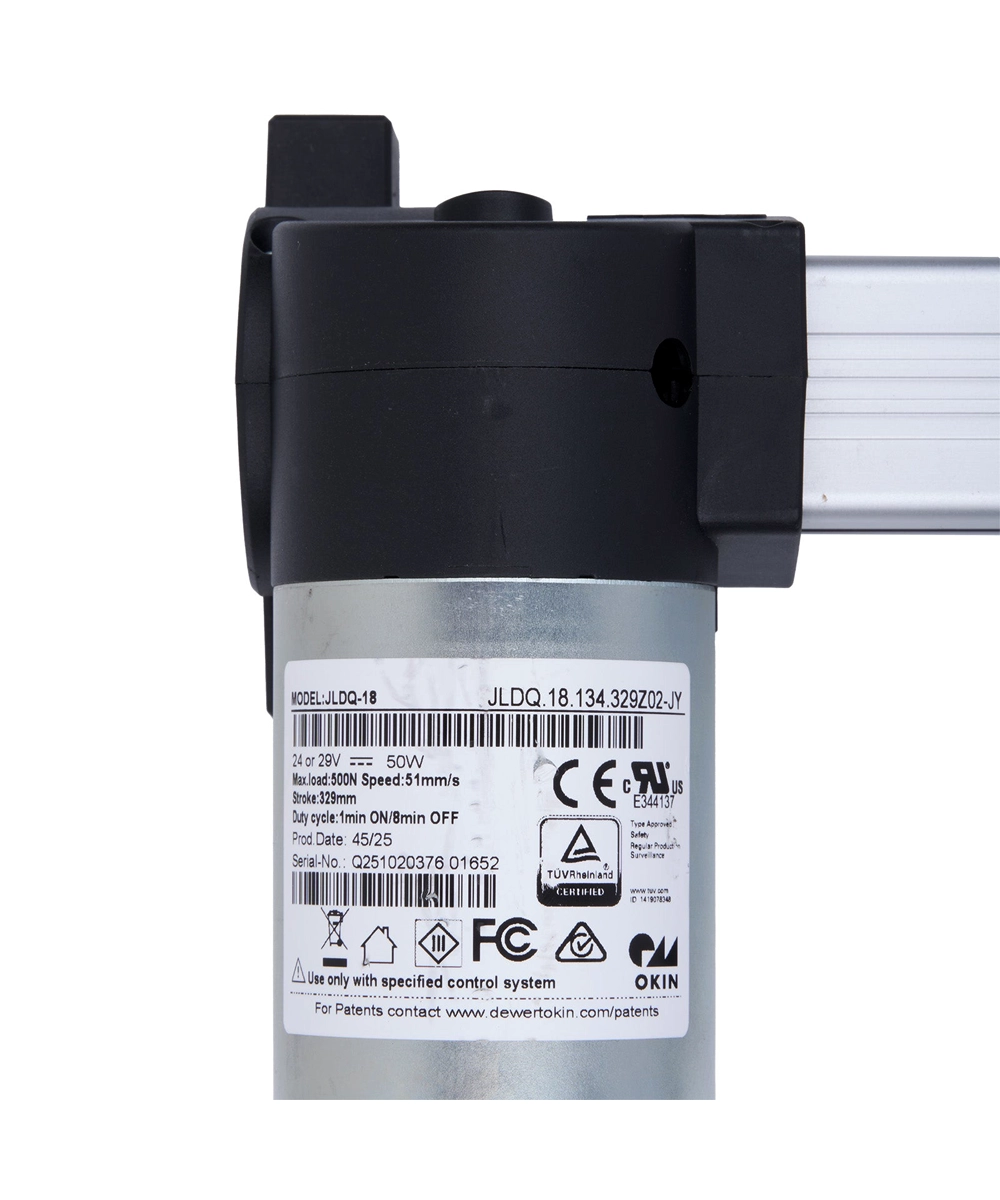

- To guarantee a drop-in fit without modifying your furniture’s framing, check the sticker on your current motor. This actuator perfectly replaces the following model numbers:
☑ OKIN JLDQ.18.134.329Z02-JY (Current Version)
☑ OKIN JLDQ.18.134.329Z02
☑ OKIN JLDQ.14.B.190.45F01-GJ
Wiring & Connection Guide

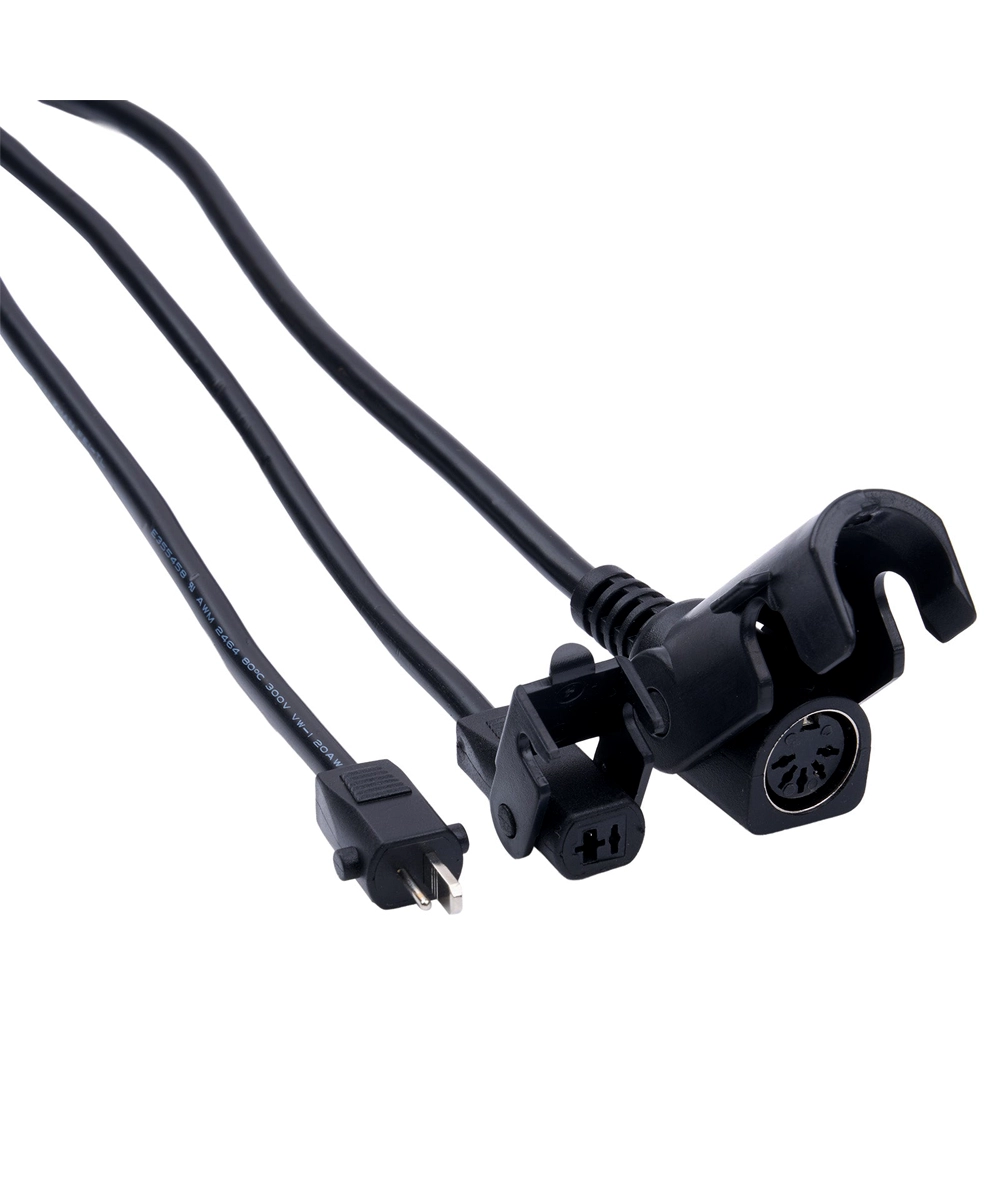

- This original OKIN JLDQ.18.134.329Z02-JY linear actuator features 3 integrated cables with distinct plug configurations to ensure a precise and safe installation:
☑ Power Input: Male 3-prong plug connects directly to your standard transformer/power adapter
☑ Hand Control: Female 5-pin plug connects to your hand remote controller or side switch
☑ Secondary Drive: Female 2-pin plug connects to the deputy motor (if your furniture features a dual-motor setup for head/foot adjustments
Technical Specifications
- Model: JLDQ.18.134.329Z02-JY
- Power Connector: 3-Prong Plug
- Input Voltage: DC 24V – 29V
- Power Output: 50W
- Maximum Load (Force): 500N (approx. 112 lbs)
- Adjustment Speed: 51 mm/s
- Stroke Length: 329 mm
- Duty Cycle Rating: Intermittent (1 min ON / 8 min OFF)
