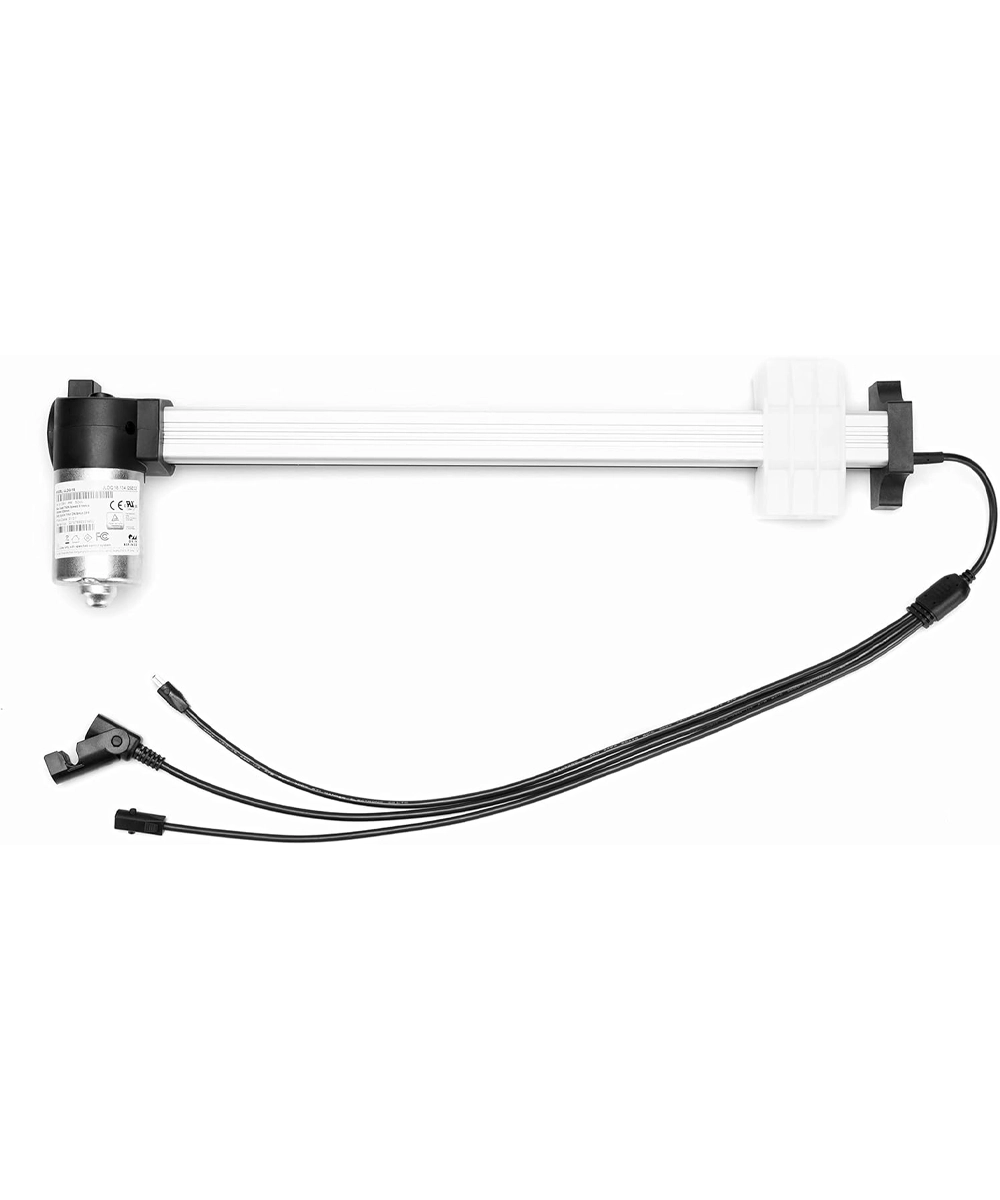

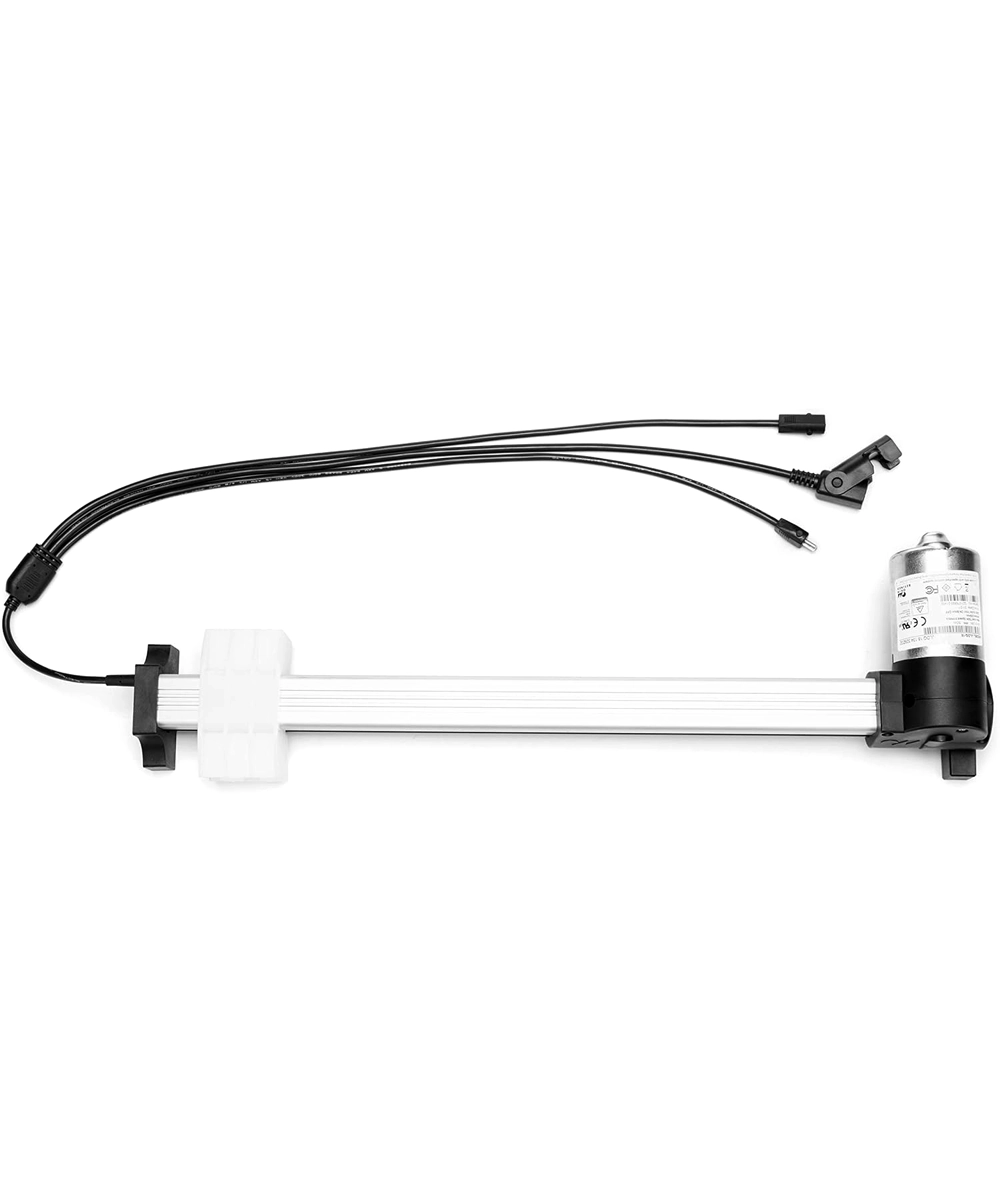

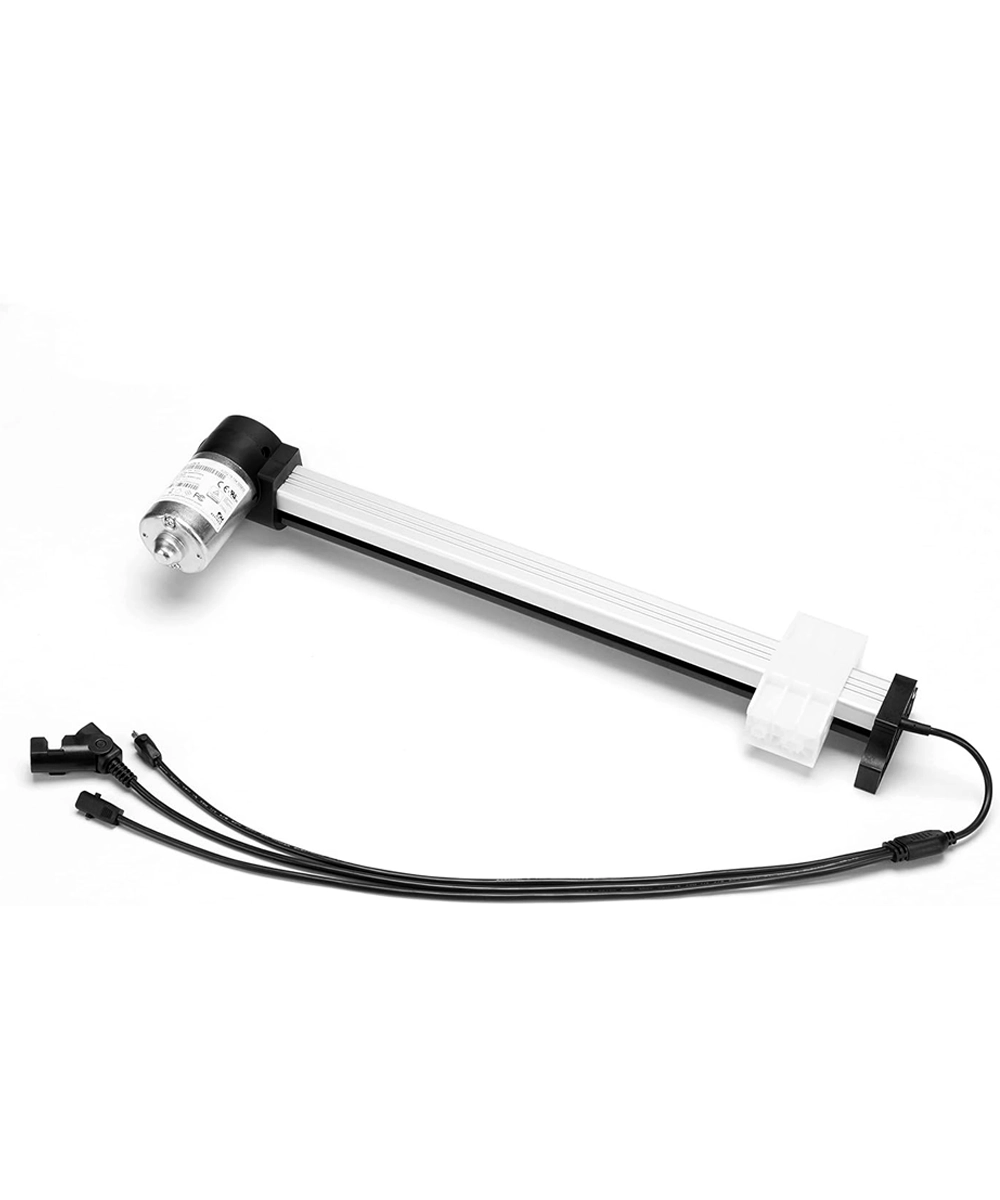

JLDQ-18 / JLDQ.18.134.329Z02 Okin Recliner Motor Replacement
Compatibility & Fitment
- Finding the exact motor match is critical due to frame clearance and stroke limits. This unit is the primary replacement for OKIN model JLDQ.18.134.329Z02 and is technically compatible with the following variants:
☑ Sub-models: JLDQ.18.134.329Z02 / Z03 / Z05 / Z06 / Z08
☑ Alternative Codes: JLDQ.18.134.329D / Z - Note: Minor housing variations between these versions do not impact installation or mechanical performance
Heavy-Duty Specifications
- Push/Pull Force: 750 N (Approx. 168 lbs of lift)
- Stroke Length: 329 mm
- Retracted Length (Minimum): 134 mm
- Fully Extended Length: 463 mm
- Build: High-grade Aluminum and reinforced PA casing
Wiring & Connector Guide

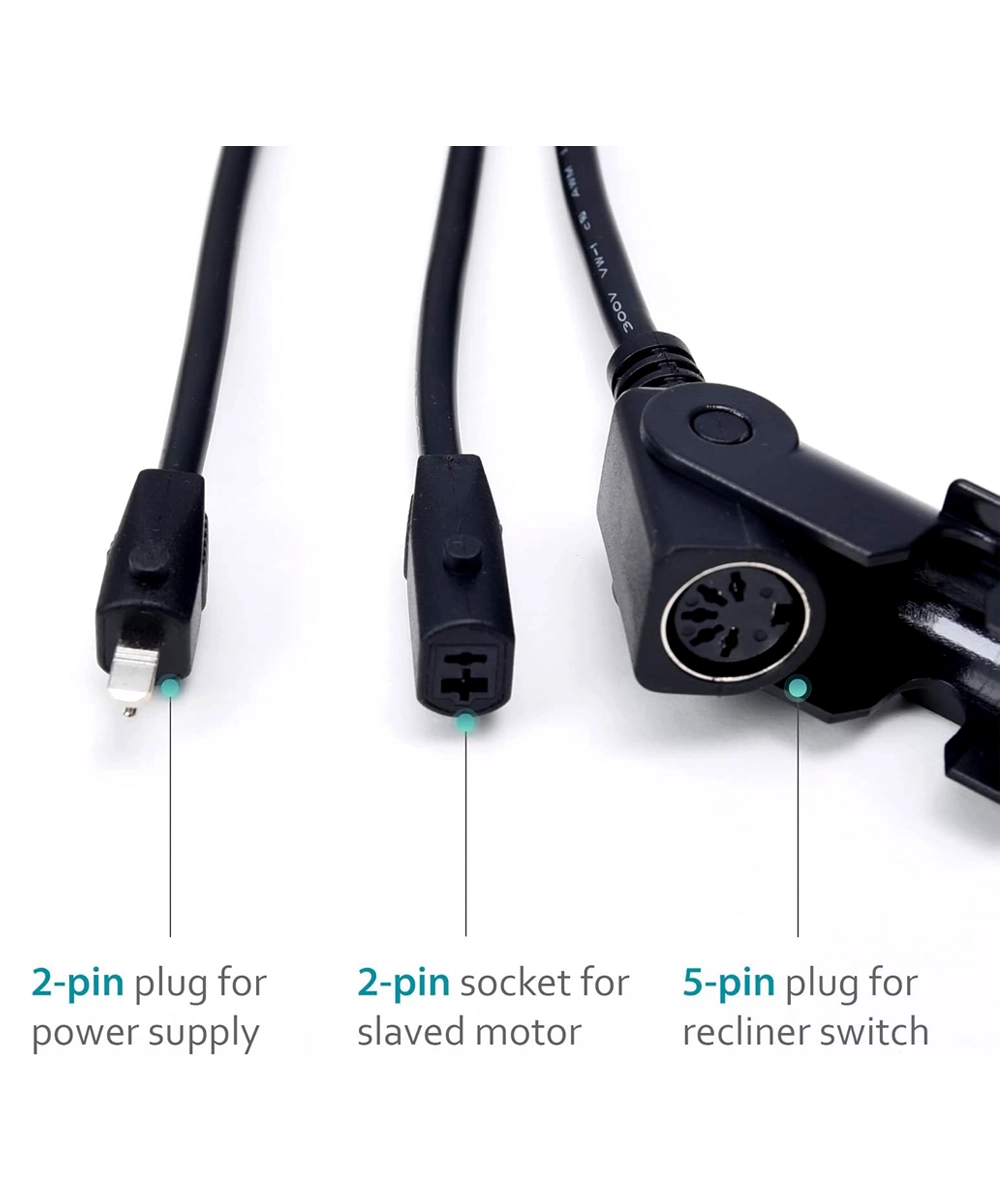

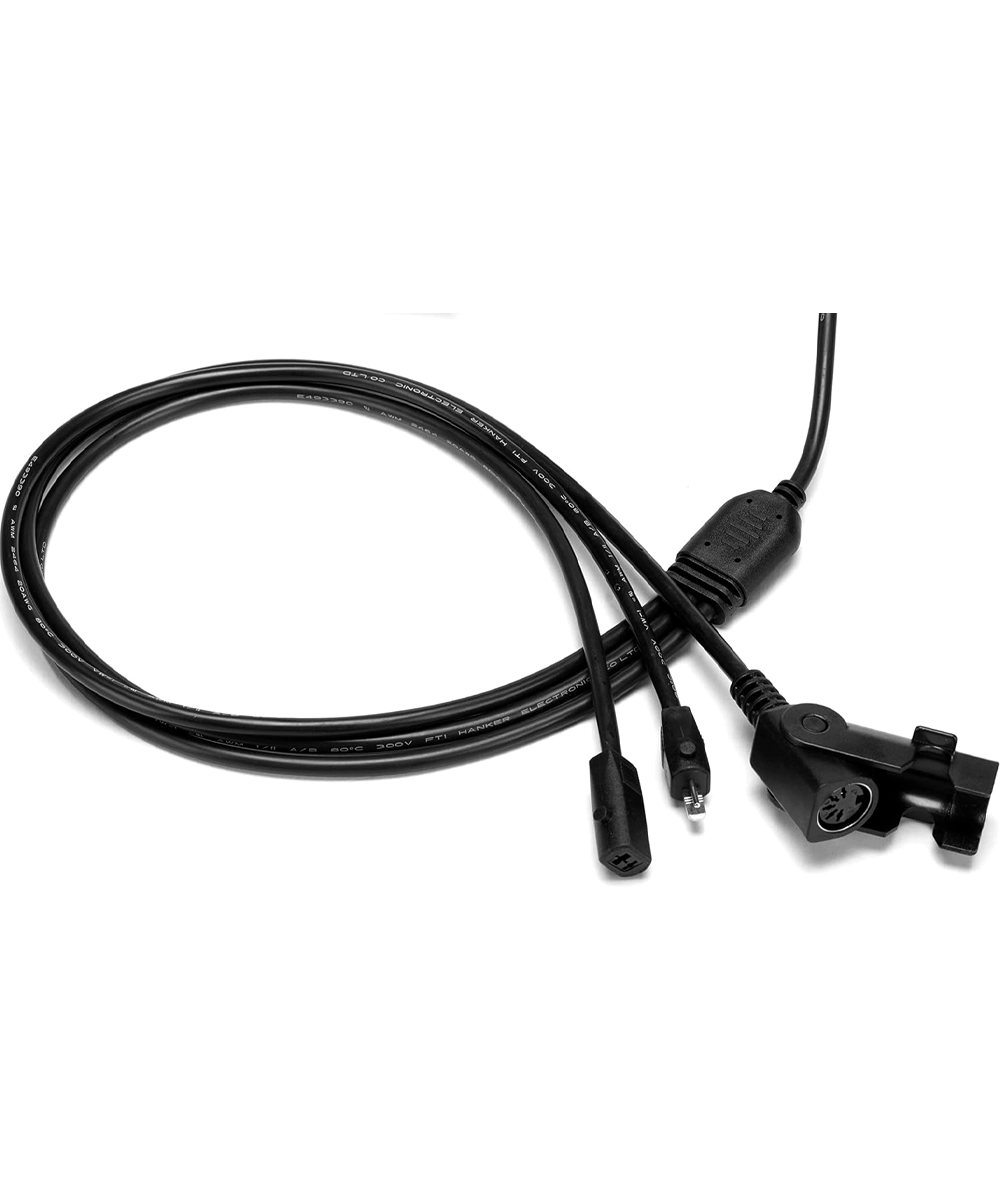

- This motor features a 3-port connector set for a complete “plug-and-play” setup:
- Hand Control: 5-pin round plug with a locking clip for secure switching
- Power Input: 2-pin square/flat plug (standard transformer connection)
- Synchronization: 2-pin socket for auxiliary or “slave” motor connections

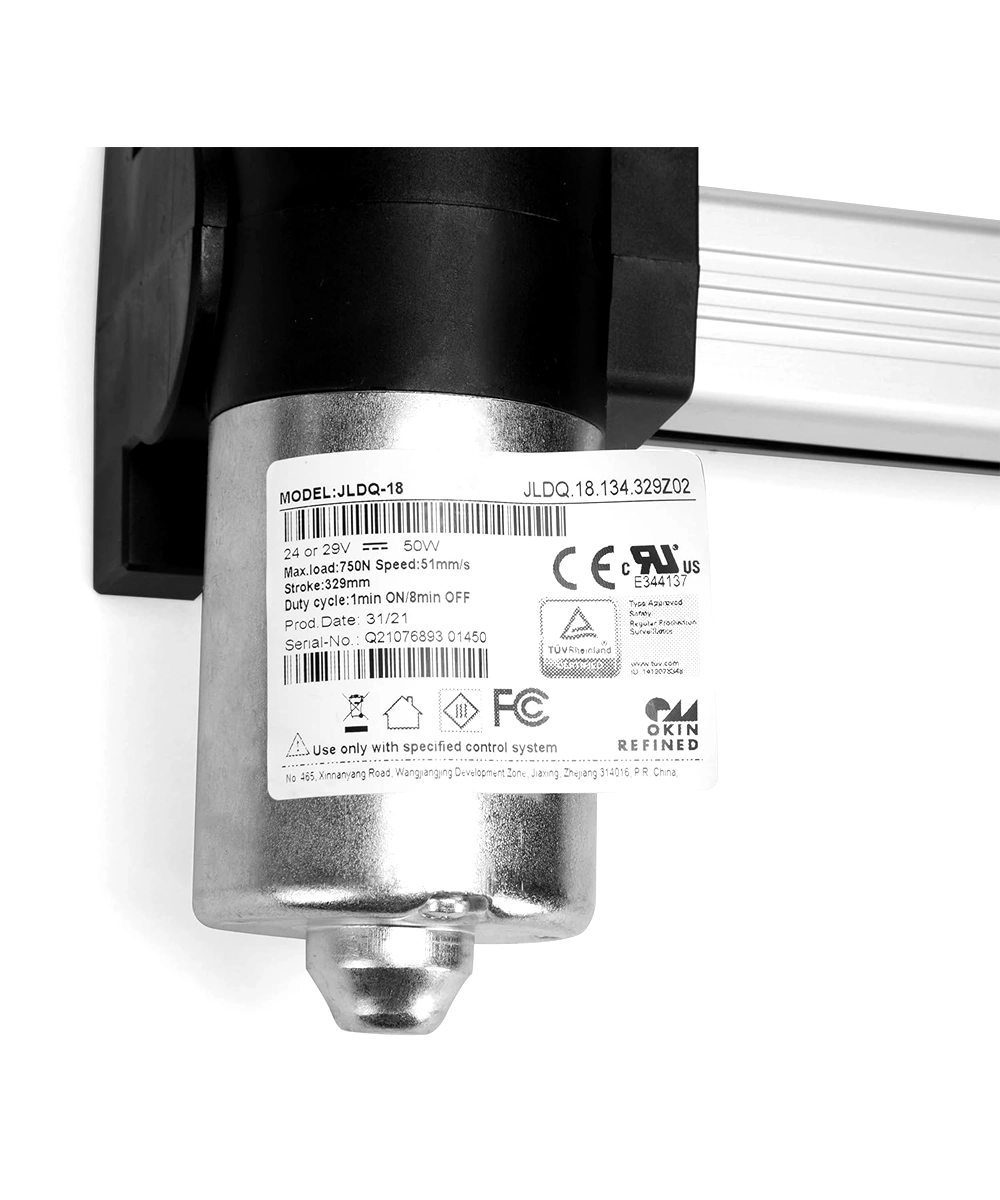

- Pro Tip: Before ordering, check the sticker on your current motor. If the stroke (329mm) and minimum installation dimension (134mm) match, this actuator will fit your frame
MODEL: JLDQ.18.134.329Z02
