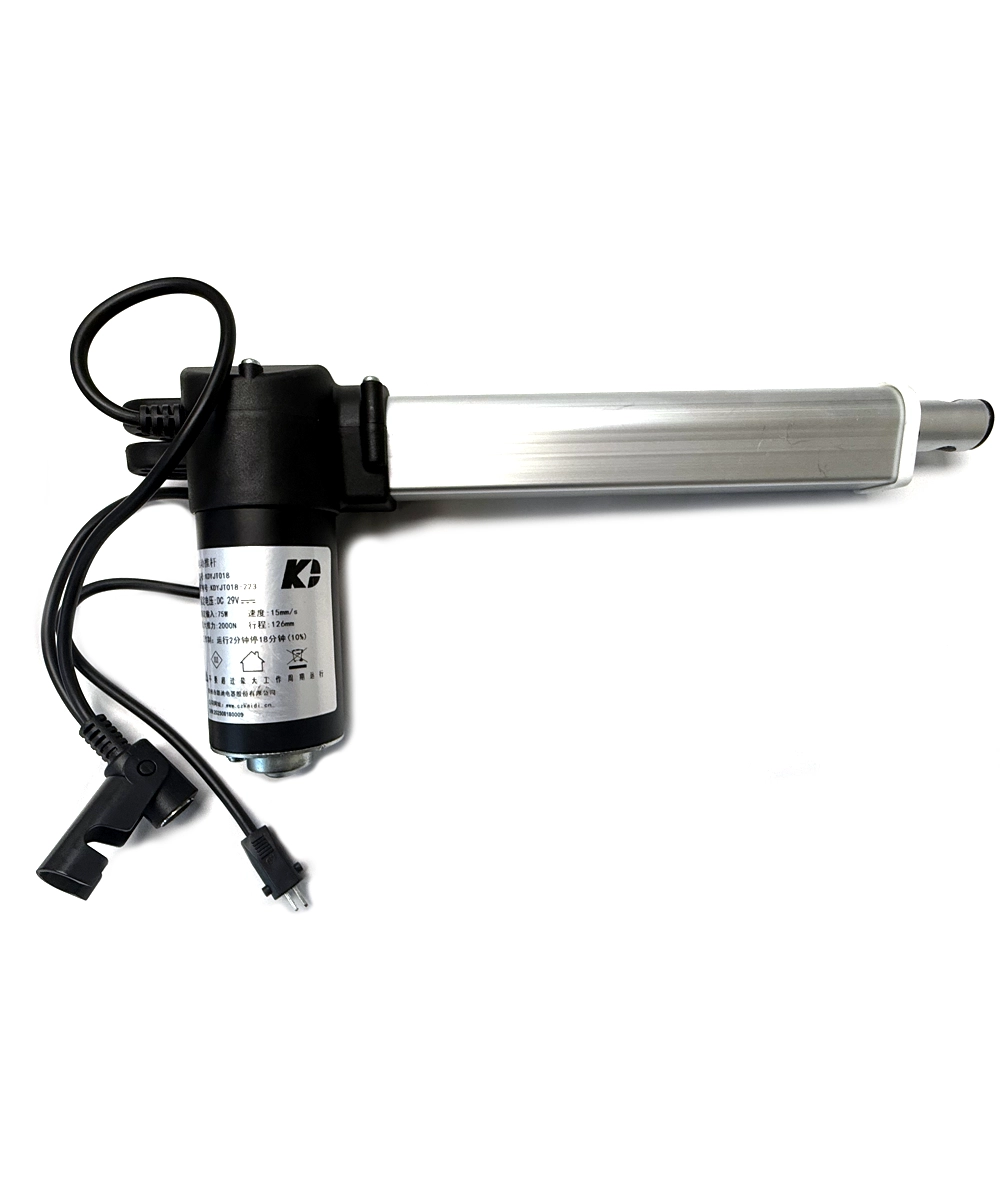

KDYJT018-223 Kaidi Linear Actuator for Recliner & Lift Chair
This is the genuine KAIDI KDYJT018-223 linear actuator — the driving actuator that powers motion furniture such as power recliners and lift chairs. Made by KAIDI (Changzhou Kaidi Electrical Co., Ltd.), it delivers the smooth, controlled motion that raises, reclines, and returns your chair to position
Compatibility
- This linear actuator is not cross-compatible. Please order it only if your existing actuator has the exact same model number: KDYJT018-223
Features

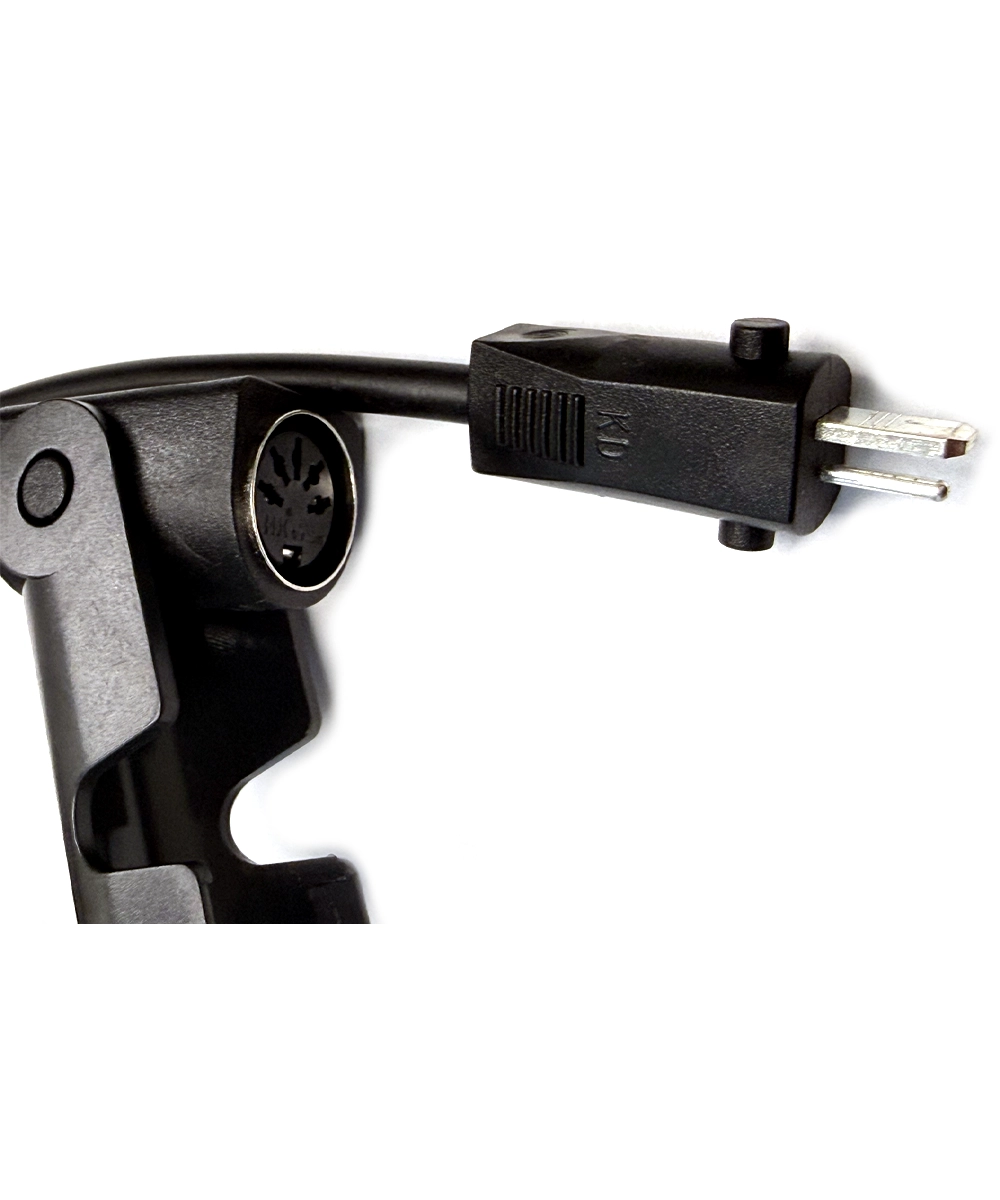

This actuator comes with two cables and two plugs:
☑ A male 2-pin plug that connects to the power adapter / transformer
☑ A female 5-pin plug that connects to the hand remote / control switch

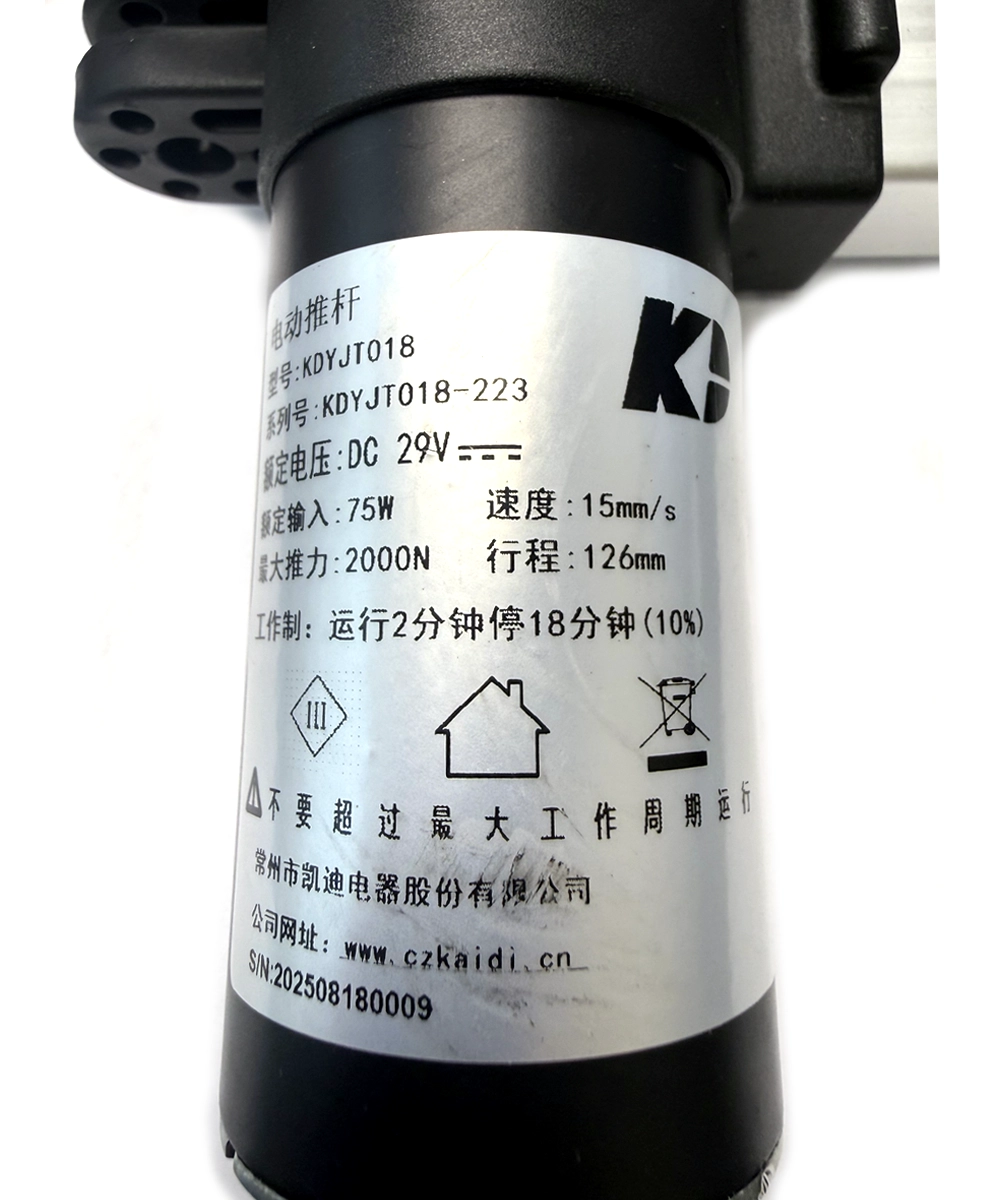

Specifications
- Model: KDYJT018
- Full model number: KDYJT018-223
- Input: DC 29V · 75W
- Max thrust: 2000N
- Speed: 15mm/s
- Stroke: 126mm
- Duty cycle: 2 min ON / 18 min OFF (10%)
- Protection class: Class III (low-voltage)
- Use: Indoor / household use only
